CS46-12X12 Couplamatic VARI-CRIMP Coupling - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP (Old Part Number: 12P82V)

CS46-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x G-3/4-14 Thread 60° Cone Female Swivel | 3/4" BSPP | 90° Elbow | Trivalent Zinc Plating | Replaces: 12P82V

Save $13.96

$34.90

$34.90 - $34.90

$34.90

$20.94

$20.94 - $20.94

$20.94

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel

Specifications for Variant SKU: CS46-12X12 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female BSPP, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. G. as part of thread size is ISO designation for parallel thread.

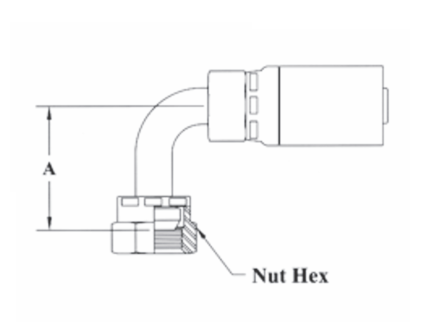

Part Number	Hose ID	BSPP Size	Thread Size	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	A-Drop Inches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS46-4X4	1/4"	1/4"	G-1/4-19	1.50"	3/4"	4P74V	HY04-04BPF90T	1B2HY-4-4	04U-74P
CS46-6X6	3/8"	3/8"	G-3/8-19	1.60"	7/8"	6P76V	HY06-06BPF90T	1B2HY-6-6	06U-76P
CS46-8X8	1/2"	1/2"	G-1/2-14	1.89"	1"	8P78V	HY08-08BPF90T	1B2HY-8-8	08U-78P
CS46-10X10	5/8"	5/8"	G-5/8-14	1.83"	1-3/16"	10P80V	HY10-10BPF90T	1B2HY-10-10	10U-80P
CS46-12X12	3/4"	3/4"	G-3/4-14	2.55"	1-1/4"	12P82V	HY12-12BPF90T	1B2HY-12-12	12U-82P
CS46-16X16	1"	1"	G-1-11	2.98"	1-1/2"	16P86V	HY16-16BPF90T	1B2HY-16-16	16U-86P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
