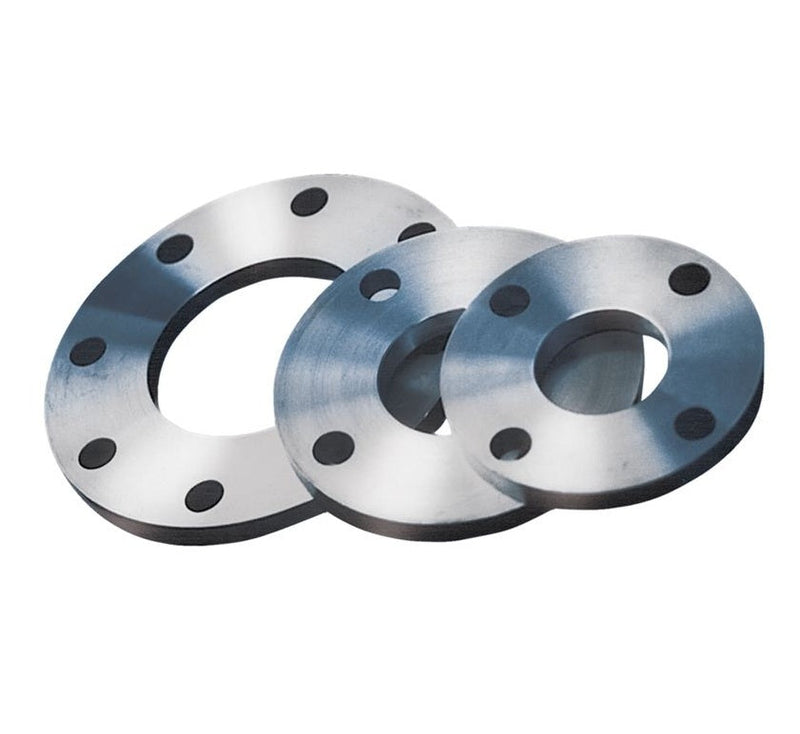

CSPF0250 by Kuriyama | CSPF Series | Plate 4-Hole Flange 150# | 2-1/2" Size | 7" OD | Bore: 2.940" | Thickness: 5/8" | Carbon Steel

Save $16.58

$41.46

$41.46 - $41.46

$41.46

$24.88

$24.88 - $24.88

$24.88

Kuriyama of America Inc.
CSPF Series | Plate Flange 150# | Carbon Steel

Designed for use in low-pressure applications in noncorrosive environments.

Commonly used with turn back nipples to create a floating flange.

Specifications for Variant SKU: CSPF0250 Kuriyama
Series:	CSPF Series
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in 150# Flange, 2-1/2in 150# Flange, Some Ends Match
Material(s):	Carbon Steel
Applicable Specs & Approvals:	ANSI B16.56, ASTM A105

What are the Applications?

Designed for use in low-pressure applications in noncorrosive environments.
Commonly used with turn back nipples to create a floating flange.

What are the Materials?

Forged Carbon Steel.
ANSI B16.56.
ASTM A-105.


Part Number	Size (in)	OD A (in)	Bore B	Circle C (in)	Thickness (in)	Number Bolt Holes	Diameter Bolt Holes (in)	PSI Rating at 70?F	Weight Each (lbs)
CSPF0150	1-1/2"	5"	1.950"	3-7/8"	5/8"	4	5/8"	150 PSI	2.70 lbs
CSPF0200	2"	6"	2.440"	4-3/4"	5/8"	4	3/4"	150 PSI	4.10 lbs
CSPF0250	2-1/2"	7"	2.940"	5-1/2"	5/8"	4	3/4"	150 PSI	5.35 lbs
CSPF0300	3"	7-1/2"	3.570"	6"	5/8"	4	3/4	150 PSI	5.80 lbs
CSPF0400	4"	9"	4.570"	7-1/2"	5/8"	8	3/4"	150 PSI	8.00 lbs
CSPF0500	5"	10"	5.660"	8-1/2"	3/4"	8	7/8"	150 PSI	10.37 lbs
CSPF0600	6"	11"	6.720"	9-1/2"	3/4"	8	7/8"	150 PSI	11.76 lbs
CSPF0800	8"	13-1/2"	8.720"	11-3/4"	1"	8	7/8"	150 PSI	22.48 lbs
CSPF1000	10"	16"	10.880"	14-1/4"	1"	12	1"	150 PSI	26.83 lbs
CSPF1200	12"	19"	12.880"	17"	1"	12	1"	150 PSI	42.30 lbs
