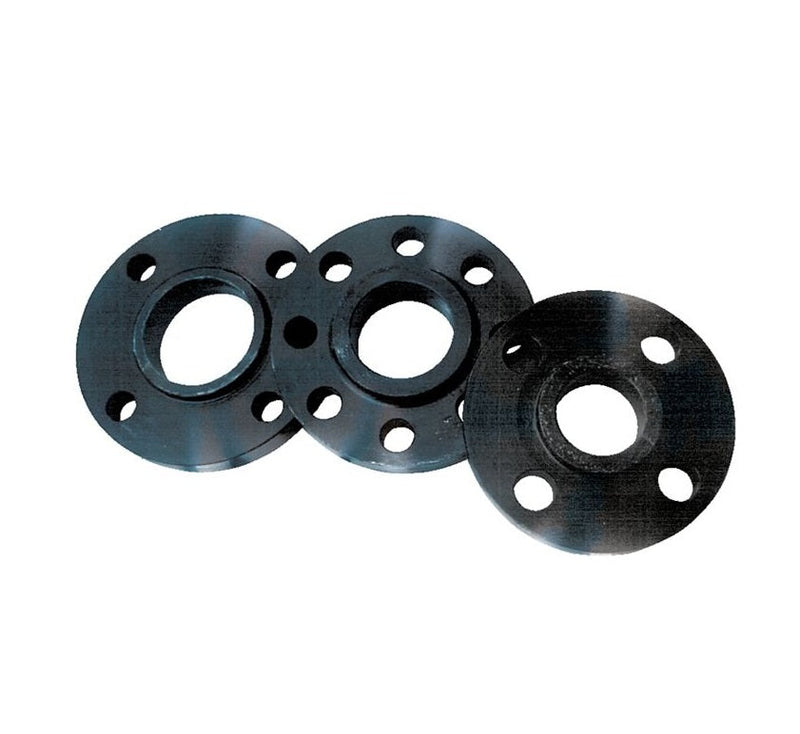

CSRF1500600 by Kuriyama | CSRF Series | Raised Face Slip-on 8-Hole Flange 150# | 6" Size | 11" OD | Bore: 6.720" | Thickness: 1-1/2" | Carbon Steel

CSRF1500600 by Kuriyama | CSRF Series | Raised Face Slip-on 8-Hole Flange 150# | 6" Size | 11" OD | Bore: 6.720" | Thickness: 1-1/2" | Carbon Steel

Save $38.88 Save $38.88
$128.37
$128.37 - $128.37
$128.37
$89.49
$89.49 - $89.49
$89.49

Kuriyama of America Inc.
CSRF Series | Raised Face Slip-on Flange 150# | Carbon Steel

Designed for use in low-pressure applications in noncorrosive environments.
Specifications for Variant SKU: CSRF1500600 Kuriyama
Series: CSRF Series
Shape (Orientation): Straight
Ends Configuration: 6in 150# Flange, 6in 150# Flange, Some Ends Match
Material(s): Carbon Steel
Applicable Specs & Approvals: ANSI B16.56, ASTM A105

What are the Applications?

  • Designed for use in low-pressure applications in noncorrosive environments.

What are the Features?

  • Flange has no internal stop. To assemble slide a pipe through the flange and weld on both sides.

What are the Materials?

  • Forged Carbon Steel
  • ANSI B16.56
  • ASTM A-105
Part Number Size
(in)		 OD A
(in)		 Bore B Circle C
(in)		 Thickness
(in)		 Number Bolt
Holes		 Diameter Bolt
Holes (in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
CSRF1500150 1-1/2" 5" 1.950" 3-7/8" 7/8" 4 5/8" 150 PSI 3.60 lbs
CSRF1500200 2" 6" 2.440" 4-3/4" 1" 4 3/4" 150 PSI 5.07 lbs
CSRF1500300 3" 7-1/2" 3.570" 6" 1-1/4" 4 3/4" 150 PSI 7.94 lbs
CSRF1500400 4" 9" 4.570" 7-1/2" 1-3/8" 8 3/4" 150 PSI 13.01 lbs
CSRF1500600 6" 11" 6.720" 9-1/2" 1-1/2" 8 7/8" 150 PSI 18.74 lbs
CSRF1500800 8" 13-1/2" 8.720" 11-3/4" 1-3/4" 8 7/8" 150 PSI 29.98 lbs
CSRF1501000 10" 16" 10.880" 14-1/4" 2" 12 1" 150 PSI 42.99 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
