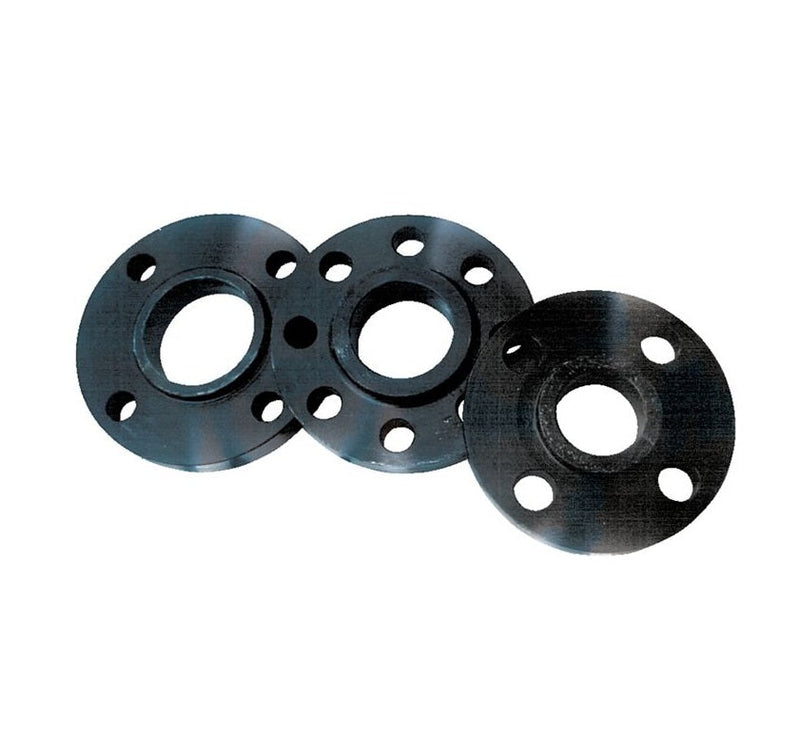

CSRF1501000 by Kuriyama | CSRF Series | Raised Face Slip-on 12-Hole Flange 150# | 10" Size | 16" OD | Bore: 10.880" | Thickness: 2" | Carbon Steel

Save $78.20

$254.94

$254.94 - $254.94

$254.94

$176.74

$176.74 - $176.74

$176.74

Kuriyama of America Inc.
CSRF Series | Raised Face Slip-on Flange 150# | Carbon Steel

Designed for use in low-pressure applications in noncorrosive environments.

Specifications for Variant SKU: CSRF1501000 Kuriyama
Series:	CSRF Series
Shape (Orientation):	Straight
Ends Configuration:	10in 150# Flange, 10in 150# Flange, Some Ends Match
Material(s):	Carbon Steel
Applicable Specs & Approvals:	ANSI B16.56, ASTM A105

What are the Applications?

Designed for use in low-pressure applications in noncorrosive environments.

What are the Features?

Flange has no internal stop. To assemble slide a pipe through the flange and weld on both sides.

What are the Materials?

Forged Carbon Steel
ANSI B16.56
ASTM A-105


Part Number	Size (in)	OD A (in)	Bore B	Circle C (in)	Thickness (in)	Number Bolt Holes	Diameter Bolt Holes (in)	PSI Rating at 70°F	Weight Each (lbs)
CSRF1500150	1-1/2"	5"	1.950"	3-7/8"	7/8"	4	5/8"	150 PSI	3.60 lbs
CSRF1500200	2"	6"	2.440"	4-3/4"	1"	4	3/4"	150 PSI	5.07 lbs
CSRF1500300	3"	7-1/2"	3.570"	6"	1-1/4"	4	3/4"	150 PSI	7.94 lbs
CSRF1500400	4"	9"	4.570"	7-1/2"	1-3/8"	8	3/4"	150 PSI	13.01 lbs
CSRF1500600	6"	11"	6.720"	9-1/2"	1-1/2"	8	7/8"	150 PSI	18.74 lbs
CSRF1500800	8"	13-1/2"	8.720"	11-3/4"	1-3/4"	8	7/8"	150 PSI	29.98 lbs
CSRF1501000	10"	16"	10.880"	14-1/4"	2"	12	1"	150 PSI	42.99 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
