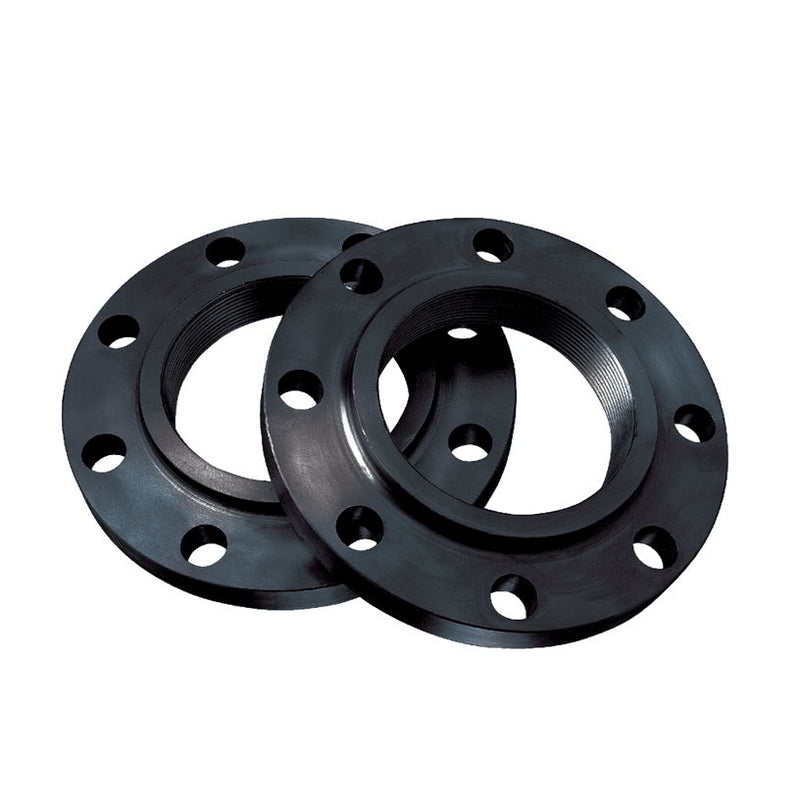

CSRFTHD1500600 by Kuriyama | CSRFTHD Series | Raised Face Threaded 8-Hole Flange 150# | 6" Female NPT | 11" OD | Bore: 6.720" | Thickness: 1-1/2" | Carbon Steel

Save $39.99

$138.98

$138.98 - $138.98

$138.98

$98.99

$98.99 - $98.99

$98.99

Kuriyama of America Inc.
CSRFTHD Series | Raised Face Female NPT Threaded Flange 150# | Carbon Steel

Designed for use in low-pressure applications in noncorrosive environments.

Designed with female NPT threads for use with male threaded fittings.

Specifications for Variant SKU: CSRFTHD1500600 Kuriyama
Series:	CSRFTHD Series
Shape (Orientation):	Straight
Ends Configuration:	6in 150# Flange, 6in Female NPT
Material(s):	Carbon Steel
Applicable Specs & Approvals:	ANSI B16.56, ASTM A105

What are the Applications?

Designed for use in low-pressure applications in noncorrosive environments.

What are the Features?

Designed with female NPT threads for use with male threaded fittings.

What are the Materials?

Forged Carbon Steel
ANSI B16.56
ASTM A-105


Part Number	Size (in)	OD A (in)	Bore B	Circle C (in)	Thickness (in)	Number Bolt Holes	Diameter Bolt Holes (in)	PSI Rating at 70?F	Weight Each (lbs)
CSRFTHD1500150	1-1/2"	5"	1.950"	3-7/8"	7/8"	4	5/8"	150 PSI	3.60 lbs
CSRFTHD1500200	2"	6"	2.440"	4-3/4"	1"	4	3/4"	150 PSI	5.07 lbs
CSRFTHD1500250	2-1/2"	7"	2.940"	5-1/2"	1-1/8"	4	3/4	150 PSI	7.05 lbs
CSRFTHD1500300	3"	7-1/2"	3.570"	6"	1-1/4"	4	3/4	150 PSI	7.94 lbs
CSRFTHD1500400	4"	9"	4.570"	7-1/2"	1-3/8"	8	3/4"	150 PSI	13.01 lbs
CSRFTHD1500600	6"	11"	6.720"	9-1/2"	1-1/2"	8	7/8"	150 PSI	18.74 lbs
CSRFTHD1500800	8"	13-1/2"	8.720"	11-3/4"	1-3/4"	8	7/8"	150 PSI	29.98 lbs
CSRFTHD1501000	10"	16"	10.880"	14-1/4"	2"	12	1"	150 PSI	42.99 lbs
CSRFTHD1501200	12"	19"	12.880"	17"	2-1/8"	12	1"	150 PSI	63.93 lbs
