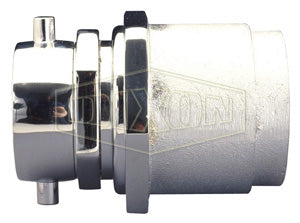

CSSTF25F30T-C Dixon Polished Chrome Plated Cast Brass Spring Check Type Snoot - Pin Lug - Female Outlet - 3" Female NPT Outlet x 2-1/2" Female NST(NH) Inlet

CSSTF25F30T-C Dixon Polished Chrome Plated Cast Brass Spring Check Type Snoot - Pin Lug - Female Outlet - 3" Female NPT Outlet x 2-1/2" Female NST(NH) Inlet

Save $337.35 Save $337.35
$843.38
$843.38 - $843.38
$843.38
$506.03
$506.03 - $506.03
$506.03

Dixon Fire Fittings
Spring Check Type Snoot - Pin Lug
Specifications for Variant SKU: CSSTF25F30T-C Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 3in Female NPT
Material(s): Chrome Plated Brass
Special Properties: Polished
Features:
  • Maximum operating pressure: 175 PSI at 70°F (21°C).
  • Finishes: -P polished, -C polished chrome plated.
  • Under no circumstances should a check snoot be installed directly into a pipe, as this may prevent the snoot from opening. Install directly into the appropriate standpipe body only.


Female Outlet
-Female NPT rigid with hexagon by female hose thread to swivel
-Connections are attached to the bodies with pipe nipples (not included)
Part Number Outlet
Female NPT		 Inlet
Female NST(NH)		 Finish Weight
(Lbs.)
CSSTF25F30T-P 3" 2-1/2" Polished 9.4000
CSSTF25F30T-C 3" 2-1/2" Polished Chrome Plated 9.9800
CSSTF30F30T-P 3" 3" Polished 5.2500


Male Outlet
-Male NPT x 2-1/2" female hose thread to swivel
-Used when a direct connection to bodies is desired
Part Number Outlet
Male NPT		 Inlet
Female NST(NH)		 Finish Weight
(Lbs.)
CSSTM25F30T-P 3" 2-1/2" Polished 7.5000
CSSTM25F30T-C 3" 2-1/2" Polished Chrome Plated -
CSSTM30F30T-P 3" 3" Polished 8.1000
CSSTM30F30T-C 3" 3 Polished Chrome Plated 8.5000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
