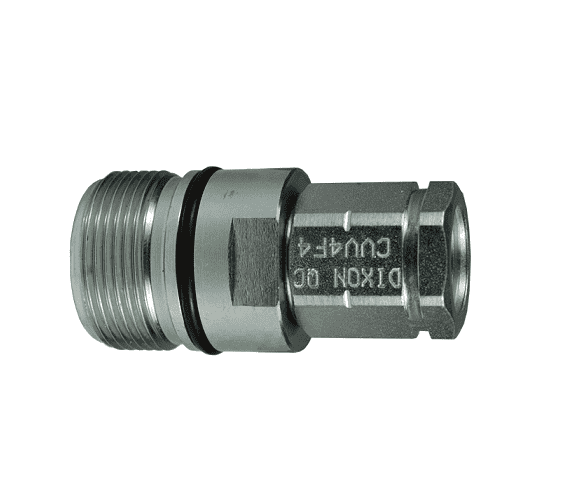

CVV4FM1815 Dixon Steel CVV-Series Quick Disconnect 1/2" European Interchange Hydraulic Nipple - Female M18X1.5

CVV4FM1815 Dixon Valve Steel CVV-Series Quick Disconnect 1/2" European Interchange Hydraulic Nipple - Female M18X1.5

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Quick Disconnect Couplings - CVV-Series Hydraulic Couplings - CVV-Series European Interchange Nipple (Female Threads)
Specifications for Variant SKU: CVV4FM1815 Dixon
Shape (Orientation): Straight
Material(s): Steel
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel retaining rings and springs maximize service life in rugged environments.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Nipples have a PTFE Anti-Extrusion ring to prevent O-Ring damage during dynamic impulse service.
Compatibility & Interchange Data:
  • European Screw-Together Interchange
  • Inteva STG-Series
  • Faster CVV-Series
  • DNP PVV3
  • Voswinkel Type-HS
  • Stucchi VD Series
Seal Components:
  • Nitrile (Buna-N) seals are standard, providing a temperature range of -13 deg. F to +257 deg. F (-25 deg. C to +125 deg. C).
  • Nipples have a PTFE Anti-Extrusion ring to prevent O-ring damage during dynamic impulse service.
Other Components:
Part Number Size Female Threads Material Length Max. OD Hex Max. Operating Pressure Burst Pressure Weight (Lbs.)
in. mm in. mm in. mm
CVV2F2 1/4" 1/4"-18 NPTF steel 2.36" 60.0mm 0.94" 24.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2500
CVV2BF2 1/4" 1/4"-19 BSPP steel 2.36" 60.0mm 0.94" 24.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2500
CVV2FM1415 1/4" M14X1.5 steel 2.36" 60.0mm 0.94" 24.0mm 3/4" 19mm 6500 PSI 26000 PSI 0.2300
CVV3F3 3/8" 3/8"-18 NPTF steel 2.52" 64.0mm 1.10" 28.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.4900
CVV3BF3 3/8" 3/8"-19 BSPP steel 2.52" 64.0mm 1.10" 28.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.4900
CVV3FM1615 3/8" M16X1.5 steel 2.52" 64.0mm 1.10" 28.0mm 7/8" 22mm 6500 PSI 26000 PSI 0.4600
CVV4F4 1/2" 1/2"-14 NPTF steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7500
CVV4OF4 1/2" 3/4"-16 ORB steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7500
CVV4BF4 1/2" 1/2"-14 BSPP steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7600
CVV4FM1815 1/2" M18X1.5 steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7800
CVV4OF5 1/2" 7/8"-14 ORB steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 5800 PSI 23200 PSI 0.7800
CVV4FM2215 1/2" M22X1.5 steel 2.76" 70.0mm 1.42" 36.0mm 1-1/16" 27mm 4400 PSI 17600 PSI 0.7500
CVV6F6 3/4" 3/4"-14 NPTF steel 3.39" 86.0mm 1.65" 42.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
CVV6BF6 3/4" 3/4"-14 BSPP steel 3.39" 86.0mm 1.65" 42.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
CVV6FM2215 3/4" M22X1.5 steel 3.39" 86.0mm 1.65" 42.0mm 1-7/16" 36mm 5800 PSI 23200 PSI 1.2800
CVV8F8 1" 1"-11 1/2 NPTF steel 3.94" 100.0mm 1.89" 48.0mm 1-5/8" 41mm 4400 PSI 17600 PSI 1.7800
CVV8BF8 1" 1"-11 BSPP steel 3.94" 100.0mm 1.89" 48.0mm 1-5/8" 41mm 4400 PSI 17600 PSI 1.7800
CVV10F10 1-1/4" 1-1/4"-11 1/2 NPTF steel 5.91" 150.0mm 2.76" 70.0mm 2" 50mm 4400 PSI 17600 PSI 2.6400
CVV10BF10 1-1/4" 1-1/4"-11 BSPP steel 5.91" 150.0mm 2.76" 70.0mm 2" 50mm 4400 PSI 17600 PSI 2.6400
