CVV8BF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | CVV-Series | 1" Female BSPP x 1" European Interchange | Plug | Steel

CVV8BF8 by Dixon Valve | Hydraulic Quick Disconnect Coupling | CVV-Series | 1" Female BSPP x 1" European Interchange | Plug | Steel

Save $7.07 Save $7.07
$63.62
$63.62 - $63.62
$63.62
$56.55
$56.55 - $56.55
$56.55

Dixon Valve & Coupling
Hydraulic Coupling: CVV-Series European Screw-Together Interchange Plug (Female Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CVV8BF8 Dixon
Series: CVV-Series
Shape (Orientation): Straight
Ends Configuration: 1in Male European Screw-Together QD Interchange, 1in Female BSPP
Material(s): Steel
Compatibility & Interchange:
  • European Screw-Together Interchange
  • Interchangeable with ISO14541 1/4" - 3/4"
  • Inteva STG-Series, Faster CVV-Series, DNP PVV3, Voswinkel Type-HS, Stucchi VD Series

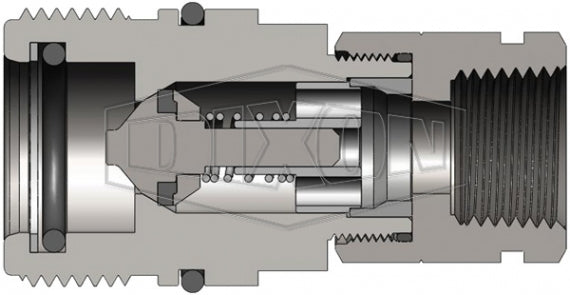

Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Steel retaining rings and springs maximize service life in rugged environments.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:
  • Nipples have a PTFE Anti-Extrusion ring to prevent O-Ring damage during dynamic impulse service.
Safety Notes:
  • Threaded sleeves enable easy connection and disconnection while system is under residual pressure only.
Additional Information:
CVV-Series | European Screw-Together Interchange Rated Pressure Chart
Body
Size		 Coupler/Plug Coupled Vacuum
inch HG		 Flow
ΔP = 30 PSI
Max. Working Burst
1/4" 6,500 PSI
(450 Bar)		 26,000 PSI
(1,800 Bar)		 27.4 7 GPM
3/8" 6,500 PSI
(450 Bar)		 26,000 PSI
(1,800 Bar)		 27.4 10 GPM
1/2" 5,800 PSI
(400 Bar)		 23,200 PSI
(1,600 Bar)		 27.4 15 GPM
3/4" 5,800 PSI
(400 Bar)		 23,200 PSI
(1,600 Bar)		 27.4 26 GPM
1" 4,400 PSI
(300 Bar)		 17,600 PSI
(1,200 Bar)		 27.4 45 GPM
1-1/4" 4,400 PSI
(300 Bar)		 17,600 PSI
(1,200 Bar)		 27.4 70 GPM
CVV-Series | European Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
CVV2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 2.36"
(60.0mm)		 0.94"
(24.0mm)		 19mm
CVV2FM1415 Plug/Male 1/4" M14X1.5 Female Metric Steel 2.36"
(60.0mm)		 0.94"
(24.0mm)		 19mm
CVV3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 2.52"
(64.0mm)		 1.10"
(28.0mm)		 22mm
CVV3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 2.52"
(64.0mm)		 1.10"
(28.0mm)		 22mm
CVV3FM1615 Plug/Male 3/8" M16X1.5 Female Metric Steel 2.52"
(64.0mm)		 1.10"
(28.0mm)		 22mm
CVV4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 2.76"
(70.0mm)		 1.42"
(36.0mm)		 27mm
CVV4OF4 Plug/Male 1/2" 3/4" - 16 Female ORB Steel 2.76"
(70.0mm)		 1.42"
(36.0mm)		 27mm
CVV4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.76"
(70.0mm)		 1.42"
(36.0mm)		 27mm
CVV4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 2.76"
(70.0mm)		 1.42"
(36.0mm)		 27mm
CVV6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 3.39"
(86.0mm)		 1.65"
(42.0mm)		 36mm
CVV6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 3.39"
(86.0mm)		 1.65"
(42.0mm)		 36mm
CVV8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 3.94"
(100.0mm)		 1.89"
(48.0mm)		 41mm
CVV8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 3.94"
(100.0mm)		 1.89"
(48.0mm)		 41mm
CVV10F10 Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 5.91"
(150.0mm)		 2.76"
(70.0mm)		 50mm
CVV10BF10 Plug/Male 1-1/4" 1-1/4" - 11 Female BSPP Steel 5.91"
(150.0mm)		 2.76"
(70.0mm)		 50mm
CVV-Series | European Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
2CVVF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.33"
(59.3mm)		 1.34"
(34.0mm)		 19mm
2CVVFM1415 Socket/Female 1/4" M14X1.5 Female Metric Steel 2.33"
(59.3mm)		 1.34"
(34.0mm)		 19mm
3CVVF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.41"
(61.2mm)		 1.34"
(34.0mm)		 22mm
3CVVBF3 Socket/Female 3/8" 3/8" - 18 Female BSPP Steel 2.41"
(61.2mm)		 1.34"
(34.0mm)		 22mm
3CVVFM1615 Socket/Female 3/8" M16X1.5 Female Metric Steel 2.41"
(61.2mm)		 1.34"
(34.0mm)		 22mm
4CVVF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.66"
(67.5mm)		 1.65"
(41.8mm)		 27mm
4CVVOF4 Socket/Female 1/2" 3/4" - 16 Female ORB Steel 2.66"
(67.5mm)		 1.65"
(41.8mm)		 27mm
4CVVBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.66"
(67.5mm)		 1.65"
(41.8mm)		 27mm
4CVVOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 2.66"
(67.5mm)		 1.65"
(41.8mm)		 27mm
6CVVF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.15"
(80.0mm)		 1.89"
(48.0mm)		 36mm
6CVVBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.15"
(80.0mm)		 1.89"
(48.0mm)		 36mm
8CVVF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 3.30"
(83.9mm)		 2.35"
(59.8mm)		 41mm
8CVVBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 3.30"
(83.9mm)		 2.35"
(59.8mm)		 41mm
10CVVF10 Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 5.59"
(142.0mm)		 3.14"
(79.8mm)		 50mm
10CVVBF10 Socket/Female 1-1/4" 1-1/4" - 11 Female BSPP Steel 5.59"
(142.0mm)		 3.14"
(79.8mm)		 50mm
