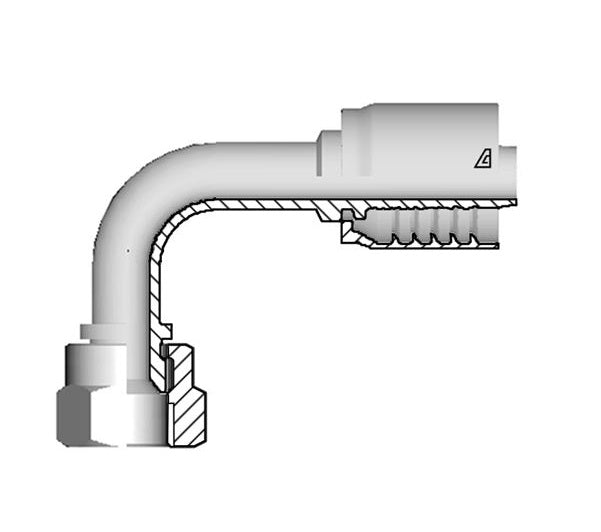

D-0606-FJ9S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -06 Hose ID x -06 Female JIC 37° Swivel | Steel

D-0606-FJ9S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -06 Hose ID x -06 Female JIC 37° Swivel | Steel

Save $4.45 Save $4.45
$15.58
$15.58 - $15.58
$15.58
$11.13
$11.13 - $11.13
$11.13

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | Hose Barb x Female JIC 37° Swivel
Specifications for Variant SKU: D-0606-FJ9S Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Female JIC
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FJ45 06 3/8" 9.5mm 06 9/16-18 32.5mm 23.0mm 19mm 0.22 lbs
D-0608-FJ9S 06 3/8" 9.5mm 08 3/4-16 32.5mm 28.0mm 25mm 0.29 lbs
D-0808-FJ9S 08 1/2" 12.7mm 08 3/4-16 37.0mm 29.0mm 25mm 0.39 lbs
D-0810-FJ9S 08 1/2" 12.7mm 10 7/8-14 38.0mm 32.0mm 27mm 0.41 lbs
D-0812-FJ9S 08 1/2" 12.7mm 12 1-1/16-12 37.3mm 46.0mm 32mm 0.53 lbs
D-1010-FJ9S 10 5/8" 15.9mm 10 7/8-14 49.0mm 32.0mm 27mm 0.59 lbs
D-1012-FJ9S 10 5/8" 15.9mm 12 1-1/16-12 48.0mm 48.0mm 32mm 0.64 lbs
D-1212-FJ9S 12 3/4" 19.0mm 12 1-1/16-12 58.2mm 46.0mm 32mm 0.86 lbs
D-1216-FJ9S 12 3/4" 19.0mm 16 1-1/16-12 53.6mm 53.0mm 38mm 0.96 lbs
D-1616-FJ9S 16 1" 25.4mm 16 1-5/16-12 74.0mm 56.0mm 38mm 1.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
