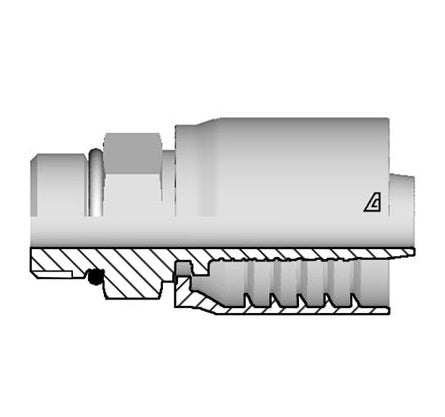

D-0608-MORB Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 Male SAE O-Ring Boss | Steel

D-0608-MORB Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 Male SAE O-Ring Boss | Steel

Save $3.90 Save $3.90
$13.64
$13.64 - $13.64
$13.64
$9.74
$9.74 - $9.74
$9.74

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male SAE O-Ring Boss
Specifications for Variant SKU: D-0608-MORB Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/2in Male O-Ring Boss
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-MORB 06 3/8" 9.5mm 06 9/16-18 23.3mm 19mm 0.91 lbs
D-0608-MORB 06 3/8" 9.5mm 08 3/4-16 24.3mm 22mm 0.23 lbs
D-0610-MORB 06 3/8" 9.5mm 10 7/8-14 26.8mm 27mm 0.27 lbs
D-0808-MORB 08 1/2" 12.7mm 08 3/4-16 25.1mm 22mm 0.28 lbs
D-0810-MORB 08 1/2" 12.7mm 10 7/8-14 27.6mm 27mm 0.36 lbs
D-0812-MORB 08 1/2" 12.7mm 12 1-1/16-12 32.1mm 32mm 0.36 lbs
D-1210-MORB 12 3/4" 19.0mm 10 7/8-14 28.1mm 27mm 0.48 lbs
D-1212-MORB 12 3/4" 19.0mm 12 1-1/16-12 32.6mm 32mm 0.55 lbs
D-1216-MORB 12 3/4" 19.0mm 16 1-5/16-12 34.6mm 38mm 0.68 lbs
D-1616-MORB 16 1" 25.4mm 16 1-5/16-12 35.4mm 38mm 0.98 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
