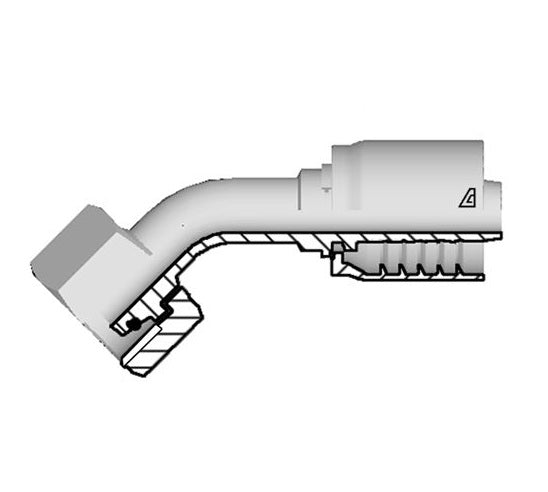

D-0620-FM4H Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | 45° Elbow | -06 Hose ID x M20 Female Metric O-Ring Swivel 24° Seat | Steel

D-0620-FM4H Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | 45° Elbow | -06 Hose ID x M20 Female Metric O-Ring Swivel 24° Seat | Steel

Save $5.76 Save $5.76
$20.15
$20.15 - $20.15
$20.15
$14.39
$14.39 - $14.39
$14.39

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | 45° Elbow | Hose Barb x Female Metric O-Ring Swivel 24° Seat
Specifications for Variant SKU: D-0620-FM4H Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 45 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) (mm) lbs/each
D-0620-FM4H 06 3/8" 9.5mm 20 M20x1.5 12mm 50.6mm 20.0mm 24mm 0.28 lbs
D-0622-FM4H 06 3/8" 9.5mm 22 M22x1.5 14mm 52.9mm 21.0mm 27mm 0.34 lbs
D-0824-FM4H 08 1/2" 12.7mm 24 M24x1.5 16mm 55.8mm 21.5mm 30mm 0.42 lbs
D-1030-FM4H 10 5/8" 15.9mm 30 M30x2 22mm 66.3mm 30.0mm 36mm 0.68 lbs
D-1236-FM4H 12 3/4" 19.0mm 36 M36x2 28mm 69.5mm 33.0mm 46mm 1.11 lbs
D-1642-FM4H 16 1" 25.4mm 42 M42x2 30mm 110.3mm 40.5mm 50mm 1.74 lbs
D-2052-FM4H 20 1-1/4" 31.8mm 52 M52x2 38mm 109.0mm 45.0mm 60mm 2.40 lbs
