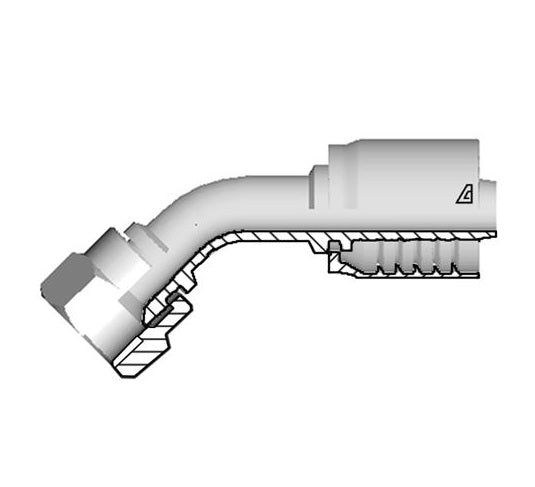

D-0808-FJ45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -08 Hose ID x -08 Female JIC 37° Swivel | Steel

Save $6.37

$22.30

$22.30 - $22.30

$22.30

$15.93

$15.93 - $15.93

$15.93

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Swivel

Specifications for Variant SKU: D-0808-FJ45 Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Hose Barb, 1/2in Female JIC
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
D-0606-FJ45	06	3/8"	9.5mm	06	9/16-18	46.3mm	11.0mm	19mm	0.24 lbs
D-0608-FJ45	06	3/8"	9.5mm	08	3/4-16	47.2mm	15.0mm	25mm	0.30 lbs
D-0808-FJ45	08	1/2"	12.7mm	08	3/4-16	51.6mm	15.0mm	25mm	0.37 lbs
D-0810-FJ45	08	1/2"	12.7mm	10	7/8-14	50.7mm	16.0mm	27mm	0.40 lbs
D-0812-FJ45	08	1/2"	12.7mm	12	1-1/16-12	57.0mm	21.0mm	32mm	0.53 lbs
D-1010-FJ45	10	5/8"	15.9mm	10	7/8-14	62.2mm	19.0mm	27mm	0.57 lbs
D-1012-FJ45	10	5/8"	15.9mm	12	1-1/16-12	68.6mm	21.0mm	32mm	0.56 lbs
D-1212-FJ45	12	3/4"	19.0mm	12	1-1/16-12	67.5mm	21.0mm	32mm	0.86 lbs
D-1214-FJ45	12	3/4"	19.0mm	14	1-3/16-12	61.0mm	22.5mm	36mm	0.75 lbs
D-1216-FJ45	12	3/4"	19.0mm	16	1-5/16-12	71.4mm	26.0mm	38mm	0.86 lbs
D-1616-FJ45	16	1"	25.4mm	16	1-5/16-12	79.4mm	24.0mm	38mm	1.31 lbs
D-1620-FJ45	16	1"	25.4mm	20	1-5/8-12	83.8mm	37.0mm	50mm	1.71 lbs
D-2020-FJ45	20	1-1/4"	31.8mm	20	1-5/8-12	97.1mm	37.0mm	50mm	2.06 lbs
D-2424-FJ45	24	1-1/2"	38.1mm	24	1-7/8-12	112.7mm	43.0mm	55mm	2.67 lbs
D-3232-FJ45	32	2"	50.8mm	32	2-1/2-12	159.9mm	67.0mm	70mm	3.48 lbs
