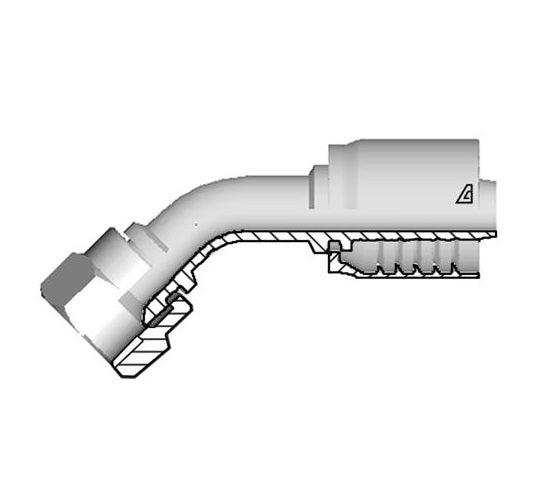

D-1010-FJ45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -10 Female JIC 37° Swivel | Steel

D-1010-FJ45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -10 Hose ID x -10 Female JIC 37° Swivel | Steel

Save $8.48 Save $8.48
$29.67
$29.67 - $29.67
$29.67
$21.19
$21.19 - $21.19
$21.19

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Swivel
Specifications for Variant SKU: D-1010-FJ45 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Hose Barb, 5/8in Female JIC
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FJ45 06 3/8" 9.5mm 06 9/16-18 46.3mm 11.0mm 19mm 0.24 lbs
D-0608-FJ45 06 3/8" 9.5mm 08 3/4-16 47.2mm 15.0mm 25mm 0.30 lbs
D-0808-FJ45 08 1/2" 12.7mm 08 3/4-16 51.6mm 15.0mm 25mm 0.37 lbs
D-0810-FJ45 08 1/2" 12.7mm 10 7/8-14 50.7mm 16.0mm 27mm 0.40 lbs
D-0812-FJ45 08 1/2" 12.7mm 12 1-1/16-12 57.0mm 21.0mm 32mm 0.53 lbs
D-1010-FJ45 10 5/8" 15.9mm 10 7/8-14 62.2mm 19.0mm 27mm 0.57 lbs
D-1012-FJ45 10 5/8" 15.9mm 12 1-1/16-12 68.6mm 21.0mm 32mm 0.56 lbs
D-1212-FJ45 12 3/4" 19.0mm 12 1-1/16-12 67.5mm 21.0mm 32mm 0.86 lbs
D-1214-FJ45 12 3/4" 19.0mm 14 1-3/16-12 61.0mm 22.5mm 36mm 0.75 lbs
D-1216-FJ45 12 3/4" 19.0mm 16 1-5/16-12 71.4mm 26.0mm 38mm 0.86 lbs
D-1616-FJ45 16 1" 25.4mm 16 1-5/16-12 79.4mm 24.0mm 38mm 1.31 lbs
D-1620-FJ45 16 1" 25.4mm 20 1-5/8-12 83.8mm 37.0mm 50mm 1.71 lbs
D-2020-FJ45 20 1-1/4" 31.8mm 20 1-5/8-12 97.1mm 37.0mm 50mm 2.06 lbs
D-2424-FJ45 24 1-1/2" 38.1mm 24 1-7/8-12 112.7mm 43.0mm 55mm 2.67 lbs
D-3232-FJ45 32 2" 50.8mm 32 2-1/2-12 159.9mm 67.0mm 70mm 3.48 lbs
