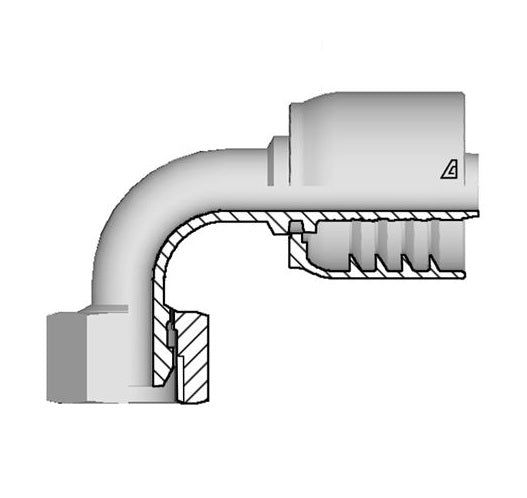

D-1012-FBO9 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -10 Hose ID x -12 Female BSPP O-Ring Swivel 60° Cone | Steel

D-1012-FBO9 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | -10 Hose ID x -12 Female BSPP O-Ring Swivel 60° Cone | Steel

Save $11.24 Save $11.24
$39.34
$39.34 - $39.34
$39.34
$28.10
$28.10 - $28.10
$28.10

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Hose Barb x Female BSP O-Ring Swivel 60° Cone
Specifications for Variant SKU: D-1012-FBO9 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 45 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FBO9 06 3/8" 9.5mm 06 3/8-19 34.8mm 42.0mm 22mm 0.26 lbs
D-0608-FBO9 06 3/8" 9.5mm 08 1/2-14 34.3mm 35.5mm 27mm 0.32 lbs
D-0808-FBO9 08 1/2" 12.7mm 08 1/2-14 35.8mm 41.0mm 27mm 0.38 lbs
D-0810-FBO9 08 1/2" 12.7mm 10 5/8-14 42.5mm 44.0mm 27mm 0.38 lbs
D-0812-FBO9 08 1/2" 12.7mm 12 3/4-14 42.5mm 43.0mm 32mm 0.47 lbs
D-1010-FBO9 10 5/8" 15.9mm 10 5/8-14 47.9mm 47.0mm 27mm 0.51 lbs
D-1012-FBO9 10 5/8" 15.9mm 12 3/4-14 51.9mm 49.0mm 32mm 0.60 lbs
D-1212-FBO9 12 3/4" 19.0mm 12 3/4-14 53.5mm 53.0mm 32mm 0.72 lbs
D-1216-FBO9 12 3/4" 19.0mm 16 1-11 54.0mm 61.0mm 38mm 0.90 lbs
D-1616-FBO9 16 1" 25.4mm 16 1-11 75.1mm 69.0mm 38mm 1.35 lbs
D-1620-FBO9 16 1" 25.4mm 20 1-1/4-11 75.1mm 88.5mm 50mm 1.98 lbs
D-2020-FBO9 20 1-1/4" 31.8mm 20 1-1/4-11 82.3mm 83.0mm 50mm 2.22 lbs
D-2024-FBO9 20 1-1/4" 31.8mm 24 1-1/2-11 91.0mm 94.0mm 55mm 2.70 lbs
D-2424-FBO9 24 1-1/2" 38.1mm 24 1-1/2-11 95.7mm 96.0mm 55mm 3.82 lbs
D-3232-FB09 32 2" 50.8mm 32 2-11 128.5mm 136.0mm 70mm 5.42 lbs
