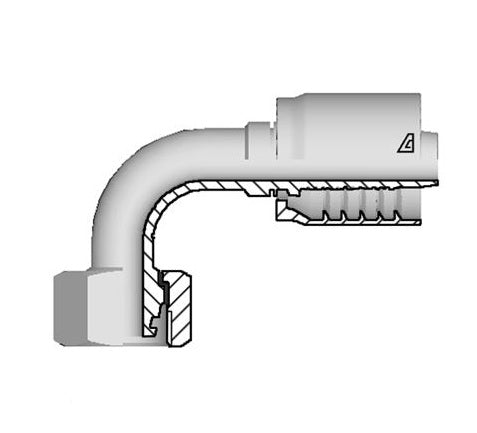

D-1026-FM9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 90° Elbow | -10 Hose ID x M26 Female Metric Swivel O-Ring 24° Seat | Steel

D-1026-FM9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 90° Elbow | -10 Hose ID x M26 Female Metric Swivel O-Ring 24° Seat | Steel

Save $11.47 Save $11.47
$40.15
$40.15 - $40.15
$40.15
$28.68
$28.68 - $28.68
$28.68

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 90° Elbow | Hose Barb x Female Metric Swivel O-Ring 24° Seat
Specifications for Variant SKU: D-1026-FM9L Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) (mm) lbs/each
D-0618-FM9L 06 3/8" 9.5mm 18 M18x1.5 12mm 32.8mm 39.0mm 22mm 0.27 lbs
D-0822-FM9L 08 1/2" 12.7mm 22 M22x1.5 15mm 39.8mm 40.5mm 27mm 0.38 lbs
D-1026-FM9L 10 5/8" 15.9mm 26 M26x1.5 18mm 51.4mm 48.0mm 32mm 0.56 lbs
D-1230-FM9L 12 3/4" 19.0mm 30 M30x2 22mm 52.1mm 59.0mm 36mm 0.81lbs
D-1636-FM9L 16 1" 25.4mm 36 M36x2 28mm 77.6mm 68.0mm 41mm 1.29 lbs
D-2045-FM9L 20 1-1/4" 31.8mm 45 M45x2 35mm 90.5mm 89.0mm 50mm 2.04 lbs
D-2452-FM9L 24 1-1/2" 38.1mm 52 M52x2 38mm 106.5mm 100.0mm 60mm 3.18 lbs
