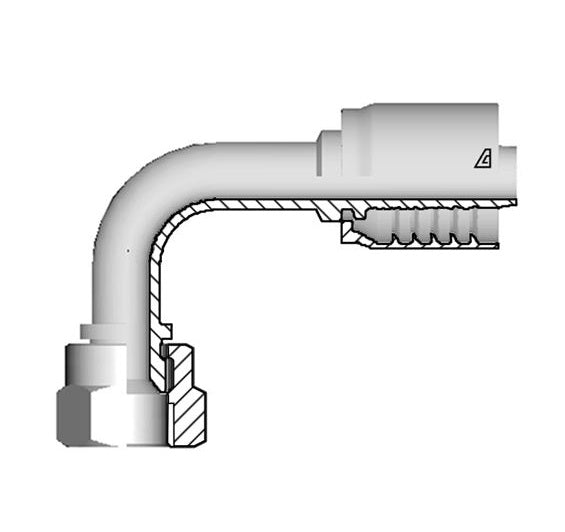

D-1212-FJ9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | -12 Hose ID x -12 Female JIC 37° Swivel | Steel

D-1212-FJ9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | -12 Hose ID x -12 Female JIC 37° Swivel | Steel

Save $17.13 Save $17.13
$59.96
$59.96 - $59.96
$59.96
$42.83
$42.83 - $42.83
$42.83

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | Hose Barb x Female JIC 37° Swivel
Specifications for Variant SKU: D-1212-FJ9L Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Female JIC
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FJ9L 06 3/8" 9.5mm 06 9/16-18 43.3mm 54.0mm 19mm 0.28 lbs
D-0608-FJ9L 06 3/8" 9.5mm 08 3/4-16 46.8mm 64.0mm 25mm 0.34 lbs
D-0808-FJ9L 08 1/2" 12.7mm 08 3/4-16 49.9mm 64.0mm 25mm 0.45 lbs
D-0810-FJ9L 08 1/2" 12.7mm 10 7/8-14 37.3mm 65.0mm 27mm 0.46 lbs
D-0812-FJ9L 08 1/2" 12.7mm 12 1-1/16-12 38.5mm 62.0mm 41mm 0.48 lbs
D-1010-FJ9L 10 5/8" 15.9mm 10 7/8-14 49.9mm 65.0mm 27mm 0.62 lbs
D-1012-FJ9L 10 5/8" 15.9mm 12 1-1/16-12 48.0mm 96.0mm 32mm 0.76 lbs
D-1212-FJ9L 12 3/4" 19.0mm 12 1-1/16-12 54.1mm 95.0mm 32mm 1.00 lbs
D-1216-FJ9L 12 3/4" 19.0mm 16 1-5/16-12 54.0mm 114.0mm 38mm 1.16 lbs
D-1616-FJ9L 16 1" 25.4mm 16 1-5/16-12 78.6mm 114.0mm 38mm 1.76 lbs
