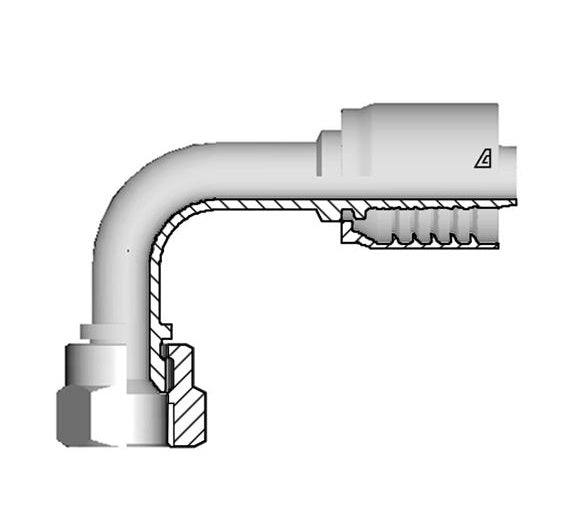

D-1214-FJ9M Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -12 Hose ID x -14 Female JIC 37° Swivel | Steel

D-1214-FJ9M Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -12 Hose ID x -14 Female JIC 37° Swivel | Steel

Save $17.09 Save $17.09
$59.82
$59.82 - $59.82
$59.82
$42.73
$42.73 - $42.73
$42.73

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | Hose Barb x Female JIC 37° Swivel
Specifications for Variant SKU: D-1214-FJ9M Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 1in Female JIC
Material(s): Steel
Special Properties: Swivel, Medium Drop
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FJ9M 06 3/8" 9.5mm 06 9/16-18 31.3mm 35.0mm 19mm 0.24 lbs
D-0608-FJ9M 06 3/8" 9.5mm 08 3/4-16 39.5mm 41.0mm 25mm 0.31 lbs
D-0808-FJ9M 08 1/2" 12.7mm 08 3/4-16 37.2mm 40.0mm 25mm 0.40 lbs
D-0810-FJ9M 08 1/2" 12.7mm 10 7/8-14 43.3mm 47.0mm 27mm 0.44 lbs
D-0812-FJ9M 08 1/2" 12.7mm 12 1-1/16-12 42.8mm 58.0mm 32mm 0.49 lbs
D-1010-FJ9M 10 5/8" 15.9mm 10 7/8-14 49.4mm 48.0mm 27mm 0.58 lbs
D-1012-FJ9M 10 5/8" 15.9mm 12 1-1/16-12 47.9mm 58.0mm 32mm 0.66 lbs
D-1212-FJ9M 12 3/4" 19.0mm 12 1-1/16-12 52.4mm 54.0mm 32mm 0.91 lbs
D-1214-FJ9M 12 3/4" 19.0mm 14 1-3/16-12 52.6mm 56.0mm 36mm 0.95 lbs
D-1216-FJ9M 12 3/4" 19.0mm 16 1-5/16-12 52.6mm 72.0mm 38mm 1.03 lbs
D-1616-FJ9M 16 1" 25.4mm 16 1-5/16-12 72.6mm 71.5mm 38mm 1.45 lbs
D-1620-FJ9M 16 1" 25.4mm 20 1-5/8-12 72.6mm 78.0mm 50mm 1.91 lbs
D-2020-FJ9M 20 1-1/4" 31.8mm 20 1-5/8-12 82.4mm 78.0mm 50mm 2.32 lbs
D-2024-FJ9M 20 1-1/4" 31.8mm 24 1-7/8-12 87.3mm 82.0mm 55mm 2.64 lbs
D-2424-FJ9M 24 1-1/2" 38.1mm 24 1-7/8-12 95.3mm 92.0mm 55mm 2.67 lbs
D-3232-FJ9M 32 2" 50.8mm 32 2-1/2-12 129.5mm 140.0mm 70mm 3.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
