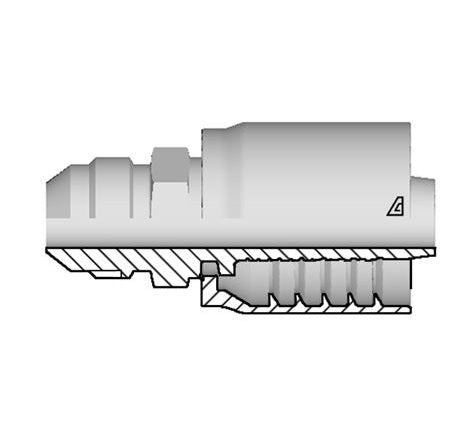

D-1214-MJIC Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -14 Male JIC 37° | Steel

D-1214-MJIC Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -14 Male JIC 37° | Steel

Save $10.25 Save $10.25
$35.88
$35.88 - $35.88
$35.88
$25.63
$25.63 - $25.63
$25.63

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male JIC 37°
Specifications for Variant SKU: D-1214-MJIC Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Male JIC
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-MJIC 06 3/8" 9.5mm 06 9/16-18 26.3mm 17mm 0.18 lbs
D-0608-MJIC 06 3/8" 9.5mm 08 3/4-16 29.8mm 19mm 0.22 lbs
D-0808-MJIC 08 1/2" 12.7mm 08 3/4-16 30.6mm 19mm 0.25 lbs
D-0810-MJIC 08 1/2" 12.7mm 10 7/8-14 34.6mm 24mm 0.30 lbs
D-0812-MJIC 08 1/2" 12.7mm 12 1-1/16-12 37.1mm 27mm 0.36 lbs
D-1010-MJIC 10 5/8" 15.9mm 10 7/8-14 34.6mm 24mm 0.36 lbs
D-1012-MJIC 10 5/8" 15.9mm 12 1-1/16-12 37.1mm 27mm 0.41 lbs
D-1212-MJIC 12 3/4" 19.0mm 12 1-1/16-12 37.6mm 27mm 0.51 lbs
D-1214-MJIC 12 3/4" 19.0mm 14 1-3/16-12 40.1mm 32mm 0.60 lbs
D-1216-MJIC 12 3/4" 19.0mm 16 1-5/16-12 42.6mm 36mm 0.78 lbs
D-1616-MJIC 16 1" 25.4mm 16 1-5/16-12 43.4mm 36mm 0.94 lbs
D-1620-MJIC 16 1" 25.4mm 20 1-5/16-12 46.9mm 46mm 1.21 lbs
D-2020-MJIC 20 1-1/4" 31.8mm 20 1-5/8-12 48.5mm 46mm 1.39 lbs
D-2024-MJIC 20 1-1/4" 31.8mm 24 1-7/8-12 53.0mm 50mm 1.63 lbs
D-2424-MJIC 24 1-1/2" 38.1mm 24 1-7/8-12 52.5mm 50mm 1.85 lbs
D-3232-MJIC 32 2" 50.8mm 32 2-1/2-12 60.0mm 60mm 3.13 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
