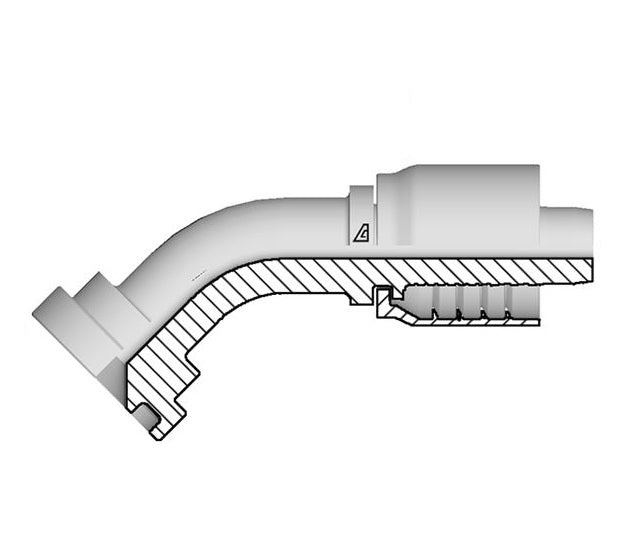

D-1216-C614 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

D-1216-C614 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

Save $16.10 Save $16.10
$56.34
$56.34 - $56.34
$56.34
$40.24
$40.24 - $40.24
$40.24

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | Hose Barb x Code 61 O-Ring Flange
Specifications for Variant SKU: D-1216-C614 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Hose Barb, 1in Code 61 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-0808-C614 08 1/2" 12.7mm 1.19" 30.2mm 43.7mm 22.0mm 5000 PSI 0.40 lbs
D-0812-C614 08 1/2" 12.7mm 1.50" 38.1mm 50.4mm 26.0mm 5000 PSI 0.51 lbs
D-1212-C614 12 3/4" 19.0mm 1.50" 38.1mm 63.8mm 32.0mm 5000 PSI 0.73 lbs
D-1216-C614 12 3/4" 19.0mm 1.75" 44.5mm 68.0mm 29.0mm 5000 PSI 0.83 lbs
D-1616-C614 16 1" 25.4mm 1.75" 44.5mm 72.8mm 33.5mm 5000 PSI 1.28 lbs
D-1620-C614 16 1" 25.4mm 2.00" 50.8mm 97.0mm 36.0mm 4000 PSI 1.36 lbs
D-2020-C614 20 1-1/4" 31.8mm 2.00" 50.8mm 85.2mm 37.5mm 4000 PSI 1.63 lbs
D-2024-C614 20 1-1/4" 31.8mm 2.38" 60.3mm 92.8mm 40.0mm 3000 PSI 1.77 lbs
D-2424-C614 24 1-1/2" 38.1mm 2.38" 60.3mm 105.4mm 48.0mm 3000 PSI 2.56 lbs
D-2432-C614 24 1-1/2" 38.1mm 2.81" 71.4mm 124.3mm 55.5mm 3000 PSI 3.10 lbs
D-3232-C614 32 2" 50.8mm 2.81" 71.4mm 129.5mm 47.5mm 3000 PSI 4.41 lbs
