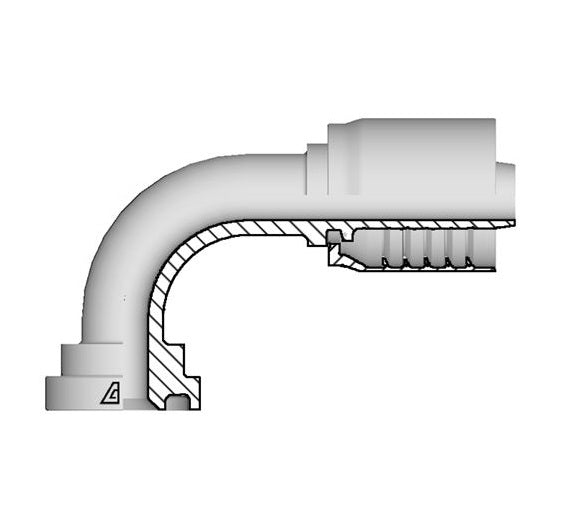

D-1216-C619 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

D-1216-C619 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

Save $17.86 Save $17.86
$62.51
$62.51 - $62.51
$62.51
$44.65
$44.65 - $44.65
$44.65

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | Hose Barb x Code 61 O-Ring Flange
Specifications for Variant SKU: D-1216-C619 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 1in Code 61 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-0808-C619 08 1/2" 12.7mm 1.19" 30.2mm 45.8mm 42.0mm 5000 PSI 0.56 lbs
D-0812-C619 08 1/2" 12.7mm 1.50" 38.1mm 45.3mm 51.0mm 5000 PSI 0.78 lbs
D-1212-C619 12 3/4" 19.0mm 1.50" 38.1mm 59.7mm 58.0mm 5000 PSI 0.95 lbs
D-1216-C619 12 3/4" 19.0mm 1.75" 44.5mm 66.2mm 64.5mm 5000 PSI 0.95 lbs
D-1616-C619 16 1" 25.4mm 1.75" 44.5mm 70.6mm 67.0mm 5000 PSI 1.31 lbs
D-1620-C619 16 1" 25.4mm 2.00" 50.8mm 73.6mm 71.0mm 4000 PSI 1.45 lbs
D-2020-C619 20 1-1/4" 31.8mm 2.00" 50.8mm 88.0mm 84.0mm 4000 PSI 1.80 lbs
D-2024-C619 20 1-1/4" 31.8mm 2.38" 60.3mm 91.5mm 87.5mm 3000 PSI 1.98 lbs
D-2424-C619 24 1-1/2" 38.1mm 2.38" 60.3mm 104.8mm 91.0mm 3000 PSI 2.73 lbs
D-2432-C619 24 1-1/2" 38.1mm 2.81" 71.4mm 104.8mm 115.0mm 3000 PSI 3.04 lbs
D-3232-C619 32 2" 50.8mm 2.81" 71.4mm 129.3mm 130.0mm 3000 PSI 5.23 lbs
