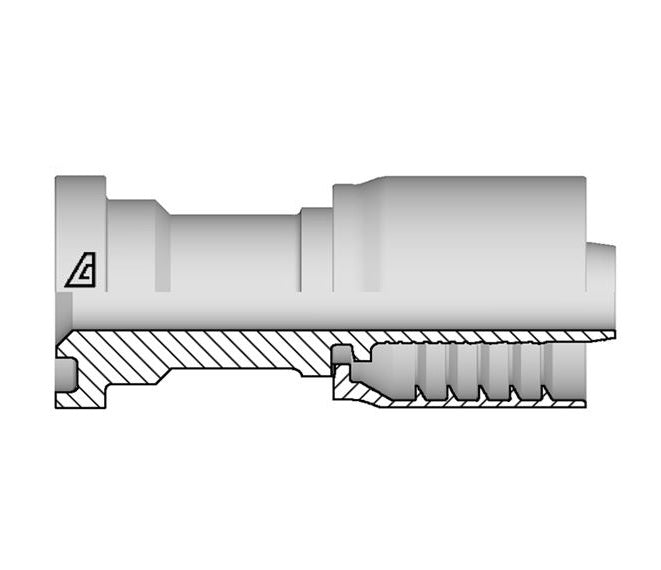

D-1216-C61S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

D-1216-C61S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -12 Hose ID x -16 Code 61 O-Ring Flange | Steel

Save $12.90 Save $12.90
$45.16
$45.16 - $45.16
$45.16
$32.26
$32.26 - $32.26
$32.26

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 O-Ring Flange
Specifications for Variant SKU: D-1216-C61S Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Code 61 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) PSI lbs/each
D-0808-C61S 08 1/2" 12.7mm 1.19" 30.2mm 41.0mm 5000 PSI 0.39 lbs
D-0812-C61S 08 1/2" 12.7mm 1.50" 38.1mm 42.0mm 5000 PSI 0.49 lbs
D-1212-C61S 12 3/4" 19.0mm 1.50" 38.1mm 42.5mm 5000 PSI 0.66 lbs
D-1216-C61S 12 3/4" 19.0mm 1.75" 44.5mm 50.5mm 5000 PSI 0.80 lbs
D-1616-C61S 16 1" 25.4mm 1.75" 44.5mm 51.4mm 5000 PSI 1.81 lbs
D-1620-C61S 16 1" 25.4mm 2.00" 50.8mm 53.9mm 4000 PSI 1.21 lbs
D-2020-C61S 20 1-1/4" 31.8mm 2.00" 50.8mm 55.5mm 4000 PSI 1.43 lbs
D-2024-C61S 20 1-1/4" 31.8mm 2.38" 60.3mm 58.5mm 3000 PSI 1.61 lbs
D-2424-C61S 24 1-1/2" 38.1mm 2.38" 60.3mm 58.5mm 3000 PSI 2.56 lbs
D-2432-C61S 24 1-1/2" 38.1mm 2.81" 71.4mm 70.0mm 3000 PSI 3.10 lbs
D-3232-C61S 32 2" 50.8mm 2.81" 71.4mm 70.0mm 3000 PSI 4.41 lbs
