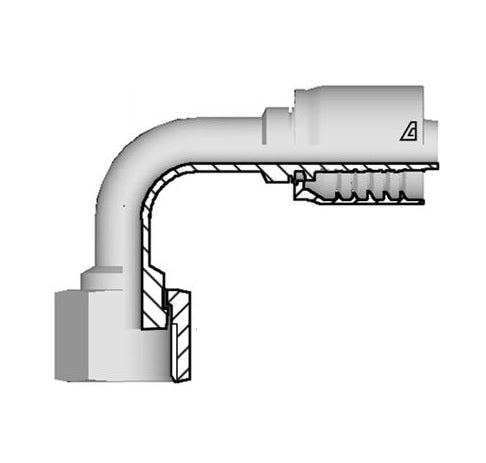

D-1616-FO9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | ISO 12151-1 | -16 Hose ID x -16 Female O-Ring Face Seal | Steel

D-1616-FO9L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | ISO 12151-1 | -16 Hose ID x -16 Female O-Ring Face Seal | Steel

Save $25.12 Save $25.12
$87.92
$87.92 - $87.92
$87.92
$62.80
$62.80 - $62.80
$62.80

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Long Drop | ISO 12151-1 | Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: D-1616-FO9L Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Material(s): Steel
Applicable Specs & Approvals: ISO 12151-1
Special Properties: Long Drop
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FO9L 06 3/8" 9.5mm 06 11/16-16 32.0mm 54.0mm 22mm 0.29 lbs
D-0608-FO9L 06 3/8" 9.5mm 08 13/16-16 35.0mm 64.0mm 24mm 0.34 lbs
D-0808-FO9L 08 1/2" 12.7mm 08 13/16-16 38.0mm 64.0mm 24mm 0.40 lbs
D-0810-FO9L 08 1/2" 12.7mm 10 1-14 37.0mm 70.0mm 30mm 0.53 lbs
D-1010-FO9L 10 5/8" 15.9mm 10 1-14 48.0mm 70.0mm 30mm 0.66 lbs
D-1212-FO9L 12 3/4" 19.0mm 12 1-3/16-12 50.0mm 96.0mm 36mm 1.03 lbs
D-1216-FO9L 12 3/4" 19.0mm 16 1-7/16-12 50.0mm 114.0mm 41mm 1.65 lbs
D-1616-FO9L 16 1" 25.4mm 16 1-7/16-12 70.5mm 114.0mm 41mm 1.71 lbs
D-2020-FO9L 20 1-1/4" 31.8mm 20 1-11/16-12 91.0mm 129.0mm 50mm 2.59 lbs
D-2424-FO9L 24 1-1/2" 38.1mm 24 2-12 103.0mm 141.0mm 60mm 3.59 lbs
