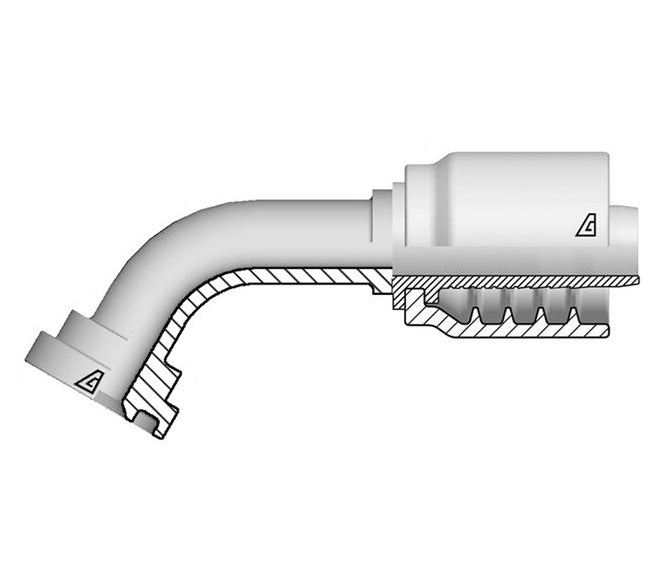

D-1620-C616 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 60° Elbow | -12 Hose ID x -12 Code 61 O-Ring Flange | Steel

D-1620-C616 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 60° Elbow | -12 Hose ID x -12 Code 61 O-Ring Flange | Steel

Save $28.82 Save $28.82
$100.86
$100.86 - $100.86
$100.86
$72.04
$72.04 - $72.04
$72.04

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 60° Elbow | Hose Barb x Code 61 O-Ring Flange
Specifications for Variant SKU: D-1620-C616 Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 60 Degree
Ends Configuration: 1in Hose Barb, 1-1/4in Code 61 Flange
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-1212-C616 12 3/4" 19.0mm 1.50" 38.1mm 86.0mm 37.0mm 5000 PSI 0.80 lbs
D-1216-C616 12 3/4" 19.0mm 1.75" 44.5mm 95.0mm 43.0mm 5000 PSI 1.10 lbs
D-1616-C616 16 1" 25.4mm 1.75" 44.5mm 101.0mm 47.0mm 5000 PSI 1.47 lbs
D-1620-C616 16 1" 25.4mm 2.00" 50.8mm 105.5mm 43.5mm 4000 PSI 1.58 lbs
D-2020-C616 20 1-1/4" 31.8mm 2.00" 50.8mm 129.5mm 56.5mm 4000 PSI 2.18 lbs
D-2424-C616 24 1-1/2" 38.1mm 2.38" 60.3mm 138.0mm 66.0mm 3000 PSI 2.95 lbs
D-3232-C616 32 2" 50.8mm 2.81" 71.4mm 155.0mm 92.0mm 3000 PSI 5.90 lbs
