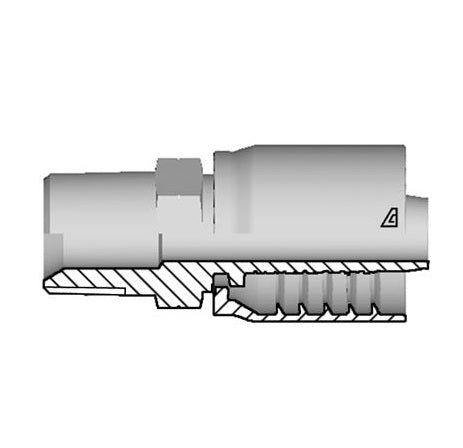

D-2020-MNPT Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Hose ID x -20 Male NPTF 60° Seat | Steel

D-2020-MNPT Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Hose ID x -20 Male NPTF 60° Seat | Steel

Save $17.58 Save $17.58
$61.54
$61.54 - $61.54
$61.54
$43.96
$43.96 - $43.96
$43.96

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat
Specifications for Variant SKU: D-2020-MNPT Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Male NPTF
Material(s): Steel
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) lbs/each
D-0604-MNPT 06 3/8" 9.5mm 04 1/4-18 26.8mm 17mm 0.18 lbs
D-0606-MNPT 06 3/8" 9.5mm 06 3/8-18 27.8mm 19mm 0.20 lbs
D-0608-MNPT 06 3/8" 9.5mm 08 1/2-14 31.3mm 22mm 0.27 lbs
D-0806-MNPT 08 1/2" 12.7mm 06 3/8-18 28.6mm 19mm 0.25 lbs
D-0808-MNPT 08 1/2" 12.7mm 08 1/2-14 32.1mm 22mm 0.31 lbs
D-0812-MNPT 08 1/2" 12.7mm 12 3/4-14 34.1mm 27mm 0.36 lbs
D-1012-MNPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 27mm 0.40 lbs
D-1212-MNPT 12 3/4" 19.0mm 12 3/4-14 34.6mm 27mm 0.50 lbs
D-1216-MNPT 12 3/4" 19.0mm 16 1-11-1/2 43.6mm 36mm 0.70 lbs
D-1616-MNPT 16 1" 25.4mm 16 1-11-1/2 44.4mm 36mm 0.97 lbs
D-1620-MNPT 16 1" 25.4mm 20 1-1/4-11-1/2 47.4mm 46mm 1.23 lbs
D-2020-MNPT 20 1-1/4" 31.8mm 20 1-1/4-11-1/2 49.0mm 46mm 1.40 lbs
D-2024-MNPT 20 1-1/4" 31.8mm 24 1-1/2-11-1/2 50.5mm 50mm 1.53 lbs
D-2424-MNPT 24 1-1/2" 38.1mm 24 1-1/2-11-1/2 50.5mm 50mm 1.79 lbs
D-3232-MNPT 32 2" 50.8mm 32 2-11-1/2 54.2mm 65mm 2.69 lbs
