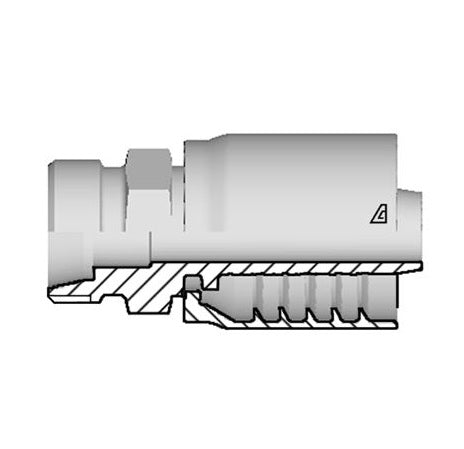

D-2045-MMSL Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | -20 Hose ID x M45 Male Metric 24° Seat | Steel

D-2045-MMSL Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | -20 Hose ID x M45 Male Metric 24° Seat | Steel

Save $21.81 Save $21.81
$76.34
$76.34 - $76.34
$76.34
$54.53
$54.53 - $54.53
$54.53

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | Hose Barb x Male Metric 24° Seat
Specifications for Variant SKU: D-2045-MMSL Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3853
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) lbs/each
D-0616-MMSL 06 3/8" 9.5mm 16 M16x1.5 10mm 23.3mm 17mm 0.18 lbs
D-0618-MMSL 06 3/8" 9.5mm 18 M18x1.5 12mm 24.3mm 19mm 0.19 lbs
D-0622-MMSL 06 3/8" 9.5mm 22 M22x1.5 15mm 25.3mm 22mm 0.22 lbs
D-0822-MMSL 08 1/2" 12.7mm 22 M22x1.5 15mm 26.1mm 22mm 0.26 lbs
D-0826-MMSL 08 1/2" 12.7mm 26 M26x1.5 18mm 27.1mm 27mm 0.33 lbs
D-1026-MMSL 10 5/8" 15.9mm 26 M26x1.5 18mm 27.1mm 27mm 0.37 lbs
D-1230-MMSL 12 3/4" 19.0mm 30 M30x2 22mm 31.6mm 32mm 0.50lbs
D-1636-MMSL 16 1" 25.4mm 36 M36x2 28mm 34.4mm 36mm 0.85 lbs
D-2045-MMSL 20 1-1/4" 31.8mm 45 M45x2 35mm 40.0mm 46mm 1.29 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
