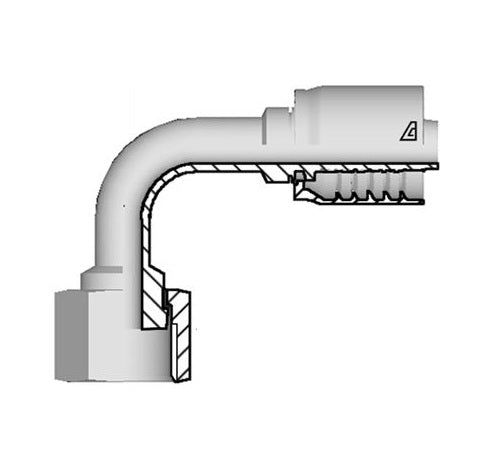

D-2424-FO9M Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | ISO 12151-1 | -24 Hose ID x -24 Female O-Ring Face Seal | Steel

D-2424-FO9M Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | ISO 12151-1 | -24 Hose ID x -24 Female O-Ring Face Seal | Steel

Save $55.90 Save $55.90
$195.65
$195.65 - $195.65
$195.65
$139.75
$139.75 - $139.75
$139.75

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Medium Drop | ISO 12151-1| Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: D-2424-FO9M Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Hose Barb, 1-1/2in Female O-Ring Face Seal
Material(s): Steel
Applicable Specs & Approvals: ISO 12151-1
Special Properties: Medium Drop
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FO9M 06 3/8" 9.5mm 06 11/16-16 41.8mm 38.0mm 22mm 0.25 lbs
D-0608-FO9M 06 3/8" 9.5mm 08 13/16-16 43.8mm 41.0mm 24mm 0.31 lbs
D-0808-FO9M 08 1/2" 12.7mm 08 13/16-16 34.8mm 42.0mm 24mm 0.38 lbs
D-0810-FO9M 08 1/2" 12.7mm 10 1-14 48.3mm 47.0mm 30mm 0.49 lbs
D-1010-FO9M 10 5/8" 15.9mm 10 1-14 55.4mm 44.0mm 30mm 0.60 lbs
D-1212-FO9M 12 3/4" 19.0mm 12 1-3/16-12 61.6mm 58.0mm 36mm 0.93 lbs
D-1216-FO9M 12 3/4" 19.0mm 16 1-7/16-12 65.6mm 71.0mm 41mm 1.08 lbs
D-1616-FO9M 16 1" 25.4mm 16 1-7/16-12 82.6mm 66.0mm 41mm 1.51 lbs
D-2020-FO9M 20 1-1/4" 31.8mm 20 1-11/16-12 97.0mm 78.0mm 50mm 2.28 lbs
D-2424-FO9M 24 1-1/2" 38.1mm 24 2-12 107.8mm 87.0mm 60mm 3.14 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
