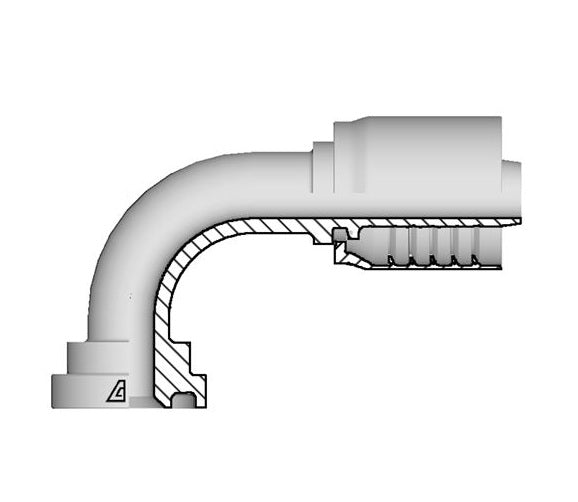

D-2432-C629 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -24 Hose ID x -32 Code 62 O-Ring Flange | Steel

Save $66.57

$232.99

$232.99 - $232.99

$232.99

$166.42

$166.42 - $166.42

$166.42

Specifications for Variant SKU: D-2432-C629 Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Hose Barb, 2in Code 62 Flange
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
6000 PSI Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	PSI	lbs/each
D-1616-C629	16	1"	25.4mm	1"	47.6mm	73.6mm	75mm	6000 PSI	1.42 lbs
D-2020-C629	20	1-1/4"	31.8mm	1-1/4"	54.0mm	94.5mm	89mm	6000 PSI	2.36 lbs
D-2424-C629	24	1-1/2"	38.1mm	1-1/2"	63.5mm	99.6mm	105mm	6000 PSI	2.95 lbs
D-2432-C629	24	1-1/2"	38.1mm	2"	63.5mm	99.0mm	102mm	6000 PSI	3.28 lbs
D-3232-C629	32	2"	50.8mm	2"	79.4mm	143.3mm	132mm	6000 PSI	5.65 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
