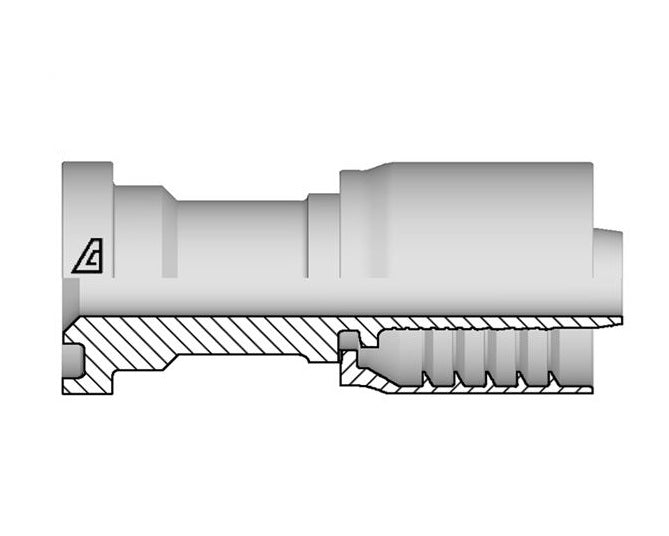

D-3232-C62S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 62 O-Ring Flange | Steel

Save $45.48

$159.17

$159.17 - $159.17

$159.17

$113.69

$113.69 - $113.69

$113.69

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 O-Ring Flange

Specifications for Variant SKU: D-3232-C62S Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Code 62 Flange
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
6000 PSI Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max Working Pressure	Weight
Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	PSI	lbs/each
D-1616-C62S	16	1"	25.4mm	1"	47.6mm	56.4mm	6000 PSI	1.27 lbs
D-2020-C62S	20	1-1/4"	31.8mm	1-1/4"	54.0mm	83.0mm	6000 PSI	2.01 lbs
D-2424-C62S	24	1-1/2"	38.1mm	1-1/2"	63.5mm	101.0mm	6000 PSI	2.77 lbs
D-2432-C62S	24	1-1/2"	38.1mm	2"	63.5mm	71.0mm	6000 PSI	3.35 lbs
D-3232-C62S	32	2"	50.8mm	2"	79.4mm	76.0mm	6000 PSI	4.76 lbs
