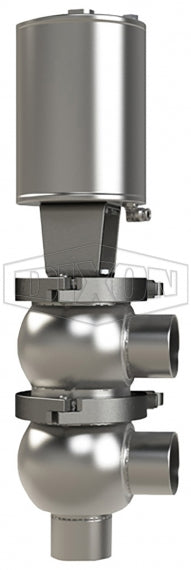

D04A10B2EE Dixon Valve 1" Single Seat Valve, Divert F Body, Weld, Spring Return Actuator (Air-To-Lower) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

D04A10B2EE Dixon Valve 1" Single Seat Valve, Divert F Body, Weld, Spring Return Actuator (Air-To-Lower) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
1" Single Seat Valve - Divert F Body - Weld Ends

Used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.
Specifications for Variant SKU: D04A10B2EE Dixon
Shape (Orientation): Multi-Directional
Material(s): 316L Stainless Steel, 304 Stainless Steel
Seal Material(s): EPDM
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish:< 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
1" 7.58" 0.41" 2.23" 2.00" 3.20" 2.78" 3.78" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D04A10B1EE 1" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A10B2EE 1" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A10B3EE 1" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D04A10B1EV 1" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A10B2EV 1" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A10B3EV 1" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D04A10B1PE 1" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D04A10B2PE 1" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D04A10B3PE 1" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D04A10B1PV 1" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D04A10B2PV 1" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D04A10B3PV 1" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
