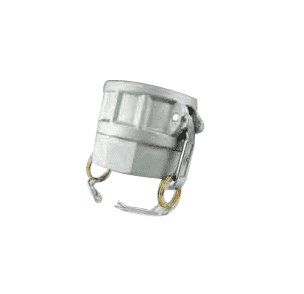

D075A by Jason Industrial | 3/4" Cam and Groove | Part D | Female Coupler x Female NPT Thread | Aluminum

D075A by Jason Industrial | 3/4" Cam and Groove | Part D | Female Coupler x Female NPT Thread | Aluminum

Save $4.17 Save $4.17
$7.80
$7.80 - $7.80
$7.80
$3.63
$3.63 - $3.63
$3.63

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part D - Female Coupler x Female NPT Thread - Aluminum
Specifications for Variant SKU: D075A Jason
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Female NPT
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Female end fits male adapter or Dust Plug.
  • Female end thread is NPT.
  • Bowl has recess for washer replacement.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • The 8" comes in two different styles. That size will interchange as follows:
    • Jason 800 series interchanges with PT Domestic, Kuriyama of America, Dixon Global and Campbell.
    • Jason 801 series interchanges with PT Import, NECO, Dixon Andrews, Evertite/APG, UPD and Sealfast
  • Aluminum body features being lightweight, rigid and having high tensile strength.
  • Female couplers are supplied with safety pins.
  • Cam arms are 304 Stainless.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
Material Specs:
  • Aluminum alloy spec ASTM B85 Grade 383.
  • 304 Type stainless steel handles.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
D075A 3/4" 250 PSI
D100A 1" 250 PSI
D125A 1-1/4" 250 PSI
D150A 1-1/2" 250 PSI
D200A 2" 250 PSI
D250A 2-1/2" 150 PSI
D300A 3" 125 PSI
D400A 4" 100 PSI
D500A 5" 75 PSI
D600A 6" 75 PSI
D800A 8" 50 PSI
D801A 8" 50 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
