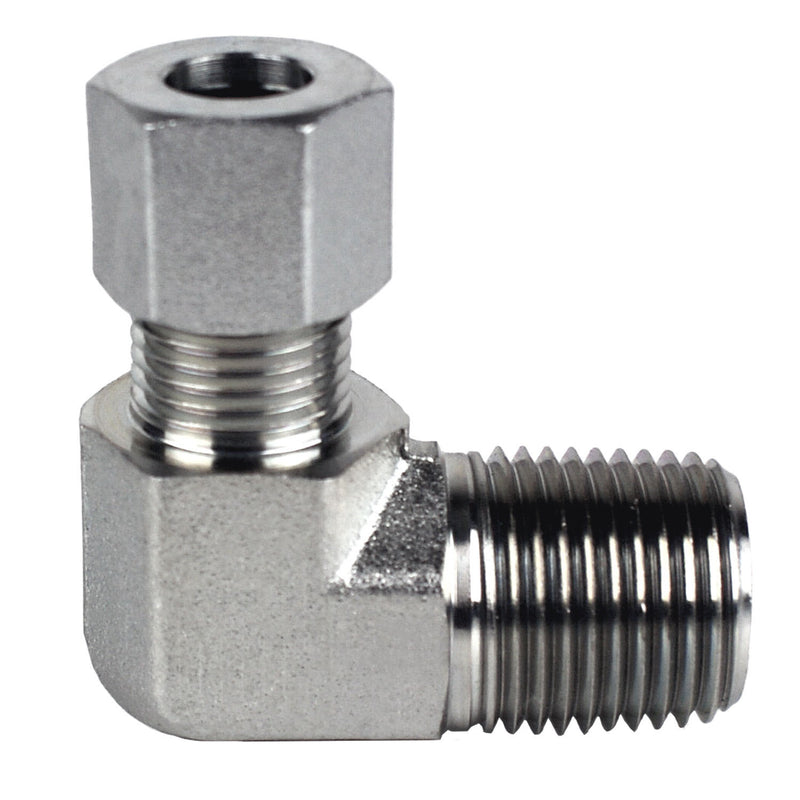

D2501-S10-04 by Midland | Hydraulic Metric Compression Fitting | DIN to Male Pipe Adapter | 90° Elbow | Heavy | S10 Tube OD x 1/4" Male NPTF | Steel

Save $4.86

$8.06

$8.06 - $8.06

$8.06

$3.20

$3.20 - $3.20

$3.20

Midland Industries
Hydraulic Metric Compression Fitting: DIN to Male Pipe Adapter - 90° Elbow - Steel

Inventory @ Manufacturers Warehouse: 494 Units

Specifications for Variant SKU: D2501-S10-04 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	S10 Female DIN, 1/4in Male NPTF
Material(s):	Steel

Part Number	Tube O.D.	Male Pipe
D2501-L06-04	Light 6mm	1/4"
D2501-L08-02	Light 8mm	1/8"
D2501-L08-04	Light 8mm	1/4"
D2501-L10-04	Light 10mm	1/4"
D2501-L10-06	Light 10mm	3/8"
D2501-L10-08	Light 10mm	1/2"
D2501-L12-04	Light 12mm	1/4"
D2501-L12-06	Light 12mm	3/8"
D2501-S08-04	Heavy 8mm	1/4"
D2501-S08-08	Heavy 8mm	1/2"
D2501-S10-04	Heavy 10mm	1/4"
D2501-S10-06	Heavy 10mm	3/8"
D2501-S12-04	Heavy 12mm	1/4"
D2501-S12-06	Heavy 12mm	3/8"
D2501-S12-08	Heavy 12mm	1/2"
D2501-S14-06	Heavy 14mm	3/8"
D2501-S14-08	Heavy 14mm	1/2"
D2501-S16-06	Heavy 16mm	3/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
