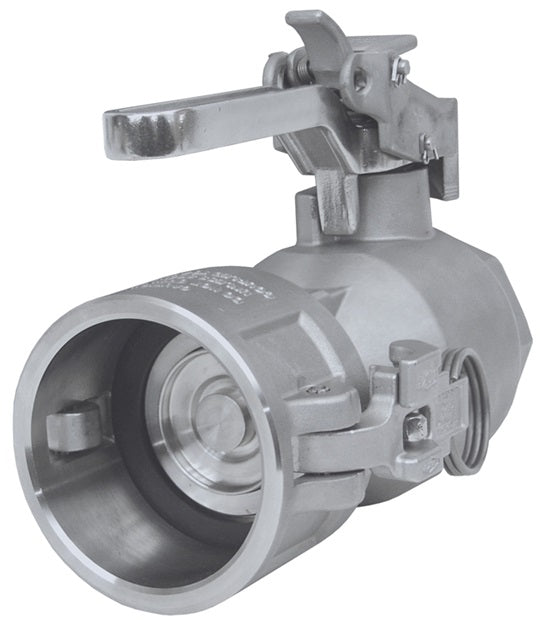

D2C72-150 Bayloc® by Dixon Valve | Dry Disconnect | D2C-Series | Cam & Groove Actuator Style Coupler | 1-1/2" Female NPT x 2" Coupler | FKM Seal | Stainless Steel

Save $79.69

$717.23

$717.23 - $717.23

$717.23

$637.54

$637.54 - $637.54

$637.54

Dixon Valve
Bayloc® Dry Disconnect | D2C-Series | Cam & Groove Actuator Style Coupler | Female NPT x Coupler

Suited for vapor recovery, suction pump line and other applications where it is necessary to easily drain the hose or pipe for cleaning.

Can also be used when product retention in a hose or pipe is desired and damage from accidental spill from an open coupler is not a concern.

Dry disconnects help prevent spillage from normal and accidental disconnection of the connection.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: D2C72-150 Dixon
Brand:	Bayloc
Series:	D2C-Series
Shape (Orientation):	Straight
Ends Configuration:	2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Compatibility & Interchange Data:
Compatible with most other brands of cam and groove style dry disconnects.
Construction:
316 stainless steel body. 304 stainless steel internal components. Stainless steel locking lever standard. EZ Boss-Lock cam arms.
Features:
The D2C style coupler does not have an internal seal cylinder, therefore the couplings do not automatically close. Helps eliminate the possibility of costly spills. EZ Boss-Lock automatic locking cam arms provide added security from accidental opening due to cam arms getting snagged or vibration. Very easy to use, just close the arms and they lock, to open simply lift the lever (possibly even with gloves on).
Use:
Couplers work with the DBA (Bayloc® Dry Disconnect) poppeted adapters in applications where automatic closure for the coupler is not desired. Use with standard cam and groove dust plugs sized one size larger than the dry disconnect size.

Stainless Steel Part Number	Female NPT	Coupler Size	Seal Material
D2C71-150	1-1/2"	2"	Nitrile Rubber
D2C71-200	2"	2-1/2"	Nitrile Rubber
D2C72-150	1-1/2"	2"	FKM
D2C72-200	2"	2-1/2"	FKM
D2C73-150	1-1/2"	2"	PTFE Encapsulated Silicone
D2C73-200	2"	2-1/2"	PTFE Encapsulated Silicone
D2C74-150	1-1/2"	2"	EPDM
D2C74-200	2"	2-1/2"	EPDM
D2C77-150	1-1/2"	2"	PTFE Encapsulated FKM
D2C77-200	2"	2-1/2"	PTFE Encapsulated FKM
D2C79-150	1-1/2"	2"	FKM-B
