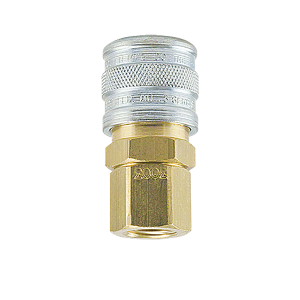

D320BL Breco by Foster | D Series | One Way Shut-Off | Quick Disconnect w/ Ball Lock | 1/4" Socket x 1/8" Female NPT Thread | Straight | Brass/Steel

D320BL Breco by Foster | D Series | One Way Shut-Off | Quick Disconnect w/ Ball Lock | 1/4" Socket x 1/8" Female NPT Thread | Straight | Brass/Steel

Save $1.78 Save $1.78
$16.01
$16.01 - $16.01
$16.01
$14.23
$14.23 - $14.23
$14.23

Foster Quick Disconnects - 3 & D Series 1/4" 1-Way Manual Sockets - Breco
Specifications for Variant SKU: D320BL ZSi-Foster
Brand: Breco
Series: D Series
Shape (Orientation): Straight
Material(s): Brass, Steel
Features:
  • High flow metal valves.
  • Precision molded seals form a "bubble tight" seal for reliable operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.
  • Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque.
  • Integral sleeve guard protects the sleeve and resists accidental disconnects for the "SG" series.
  • Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation.
  • Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
  • Accepts Industrial Interchange Plug.
  • Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug.
  • Working Pressure: 300 PSIG; vacuum to 26" Hg
  • Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-B
Specifications Body Size
1/4" 3/8" 1/2"
Rated Pressure (psi) 300 300 300
Temp. Range (Buna-N Seal) -40 deg. to +250 deg. F
Locking Device Stainless Steel Balls
Vacuum Data (inches Hg)
-- Disconnected (coupler only) Not Recommended
-- Connected 27.4 27.4 27.4
Approximate CFM at 100 (psi) 37 70 150
Female Coupler Part Number Brand Male Plug Part Number Size Description
2803 Foster 13-3 1/8" Brass/Steel
D320 Breco B-B2F1-S 1/8" Brass/Steel
BL2803 Foster - 1/8" Ball Lock
D320BL Breco - 1/8" Brass/Steel with Ball Lock
2803GB Foster - 1/8" Brass
2803GS Foster - 1/8" Steel
2803H Foster - 1/8" Steel, For Heat, Viton Seal
2803S Foster - 1/8" Brass/SS, For Steam, EPDM Seal
2803S/S Foster 13-3S/S 1/8" 303 Stainless Steel
2803W Foster - 1/8" Brass/SS, For Water, Buna-N Seal
3003 Foster 11-3 1/4" Brass/Steel
D340 Breco B-B2F2-S 1/4" Brass/Steel
BL3003 Foster - 1/4" Ball Lock
D340BL Breco - 1/4" Brass/Steel with Ball Lock
3003D Foster - 1/4" w/Dill Valve
3003GB Foster - 1/4" Brass
3003GS Foster - 1/4" Steel
3003H Foster - 1/4" Steel, For Heat, Viton Seal
3003HW Foster - 1/4" Brass/SS, For Hot Water, Viton Seal
3003LV Foster - 1/4" Steel, Less Valve
3003S Foster - 1/4" Brass/SS, For Steam, EPDM Seal
3003S/S Foster 11-3S/S 1/4" 303 Stainless Steel
BL3003S/S Foster - 1/4" Ball Lock, 303 Stainless
3003S/SH Foster - 1/4" 303 Stainless, For Heat, Viton Seal
3003W Foster - 1/4" Brass/SS, For Water, Buna-N Seal
BL3003W Foster - 1/4" Brass/SS, Ball Lock, For Water, Buna-N Seal
3203 Foster 15-3 3/8" Brass/Steel
D360 Breco B-B2F3-S 3/8" Brass/Steel
BL3203 Foster - 3/8" Ball Lock
D360BL Breco - 3/8" Brass/Steel with Ball Lock
3203GB Foster - 3/8" Brass
3203GS Foster - 3/8" Steel
3203H Foster - 3/8" Steel, For Heat, Viton Seal
3203LV Foster - 3/8" Steel, Less Valve
3203S/S Foster - 3/8" 303 Stainless Steel
BL3203S/S Foster - 3/8" N/A
3203S/SLV Foster - 3/8" Less Valve, 303 Stainless
3203W Foster - 3/8" Brass/SS, For Water, Buna-N Seal
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
