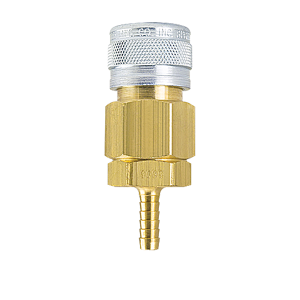

D5122 Breco by Foster | D Series | One Way Shut-Off | Quick Disconnect | 1/2" 1-Way Manual Socket x 3/4" Hose Stem | Straight | Brass/Steel

D5122 Breco by Foster | D Series | One Way Shut-Off | Quick Disconnect | 1/2" 1-Way Manual Socket x 3/4" Hose Stem | Straight | Brass/Steel

Save $11.33 Save $11.33
$28.33
$28.33 - $28.33
$28.33
$17.00
$17.00 - $17.00
$17.00

Foster Quick Disconnects - 3 & D Series 1/4" 1-Way Manual Sockets - Breco
Specifications for Variant SKU: D5122 ZSi-Foster
Brand: Breco
Series: D Series
Shape (Orientation): Straight
Material(s): Brass, Steel
Features:
  • High flow metal valves.
  • Precision molded seals form a "bubble tight" seal for reliable operation within rated working pressures. Nitrile (Buna-N) seals are standard. EPDM, Viton and Neoprene seals are available as options.
  • Proven ball locking mechanism with large numbers of stainless steel locking balls evenly distribute the load to resist wear and provide positive connections and allow a swiveling action to reduce hose torque.
  • Integral sleeve guard protects the sleeve and resists accidental disconnects for the "SG" series.
  • Knurling and/or grooves on the sleeve provide a gripping surface for ease of operation.
  • Wide range of body sizes, materials, options and end terminations are available to meet specific needs.
  • Accepts Industrial Interchange Plug.
  • Operation: Sleeve type couplings are widely used to connect air and low pressure fluid lines. Their compact and economical design uses a ball locking mechanism consisting of captive stainless steel balls that engage the locking groove on the mating plug. The sliding spring loaded sleeve on the socket must be manually retracted in order to connect or disconnect the plug.
  • Working Pressure: 300 PSIG; vacuum to 26" Hg
  • Interchangeability: Complies with ANSI/NFPA T3.20.14-1990 & IS0 6150-B
Specifications Body Size
1/4" 3/8" 1/2"
Rated Pressure (psi) 300 300 300
Temp. Range (Buna-N Seal) -40 deg. to +250 deg. F
Locking Device Stainless Steel Balls
Vacuum Data (inches Hg)
-- Disconnected (coupler only) Not Recommended
-- Connected 27.4 27.4 27.4
Approximate CFM at 100 (psi) 37 70 150
Female Coupler Part Number Brand Male Plug Part Number Size Description
5605 Foster - 1/4" Brass/Steel
D542 Breco - 1/4" Brass/Steel
BL5605 Foster - 1/4" Ball Lock, Brass/Steel
D542BL Breco - 1/4" Brass/Steel with Ball Lock
5705 Foster 59-5 3/8" Brass/Steel
D562 Breco B-B4S3-S 3/8" Brass/Steel
BL5705 Foster - 3/8" Ball Lock, Brass/Steel
D562BL Breco - 3/8" Brass/Steel with Ball Lock
5705H Foster - 3/8" For Heat, Viton Seal
5805 Foster 60-5 60-5G 1/2" Brass/Steel
D582 Breco B-B4S4-S 1/2" Brass/Steel
BL5805 Foster - 1/2" Ball Lock, Brass/Steel
D582BL Breco - 1/2" Brass/Steel with Ball Lock
5805H Foster - 1/2" For Heat, Viton Seal
5805HW Foster - 1/2" For Hot Water, Brass/SS, Viton Seal
5805W Foster - 1/2" For Water, Brass/SS, Buna-N Seal
5905 Foster 61-5 3/4" Brass/Steel
D5122 Breco B-B4S6-S 3/4" Brass/Steel
BL5905 Foster - 3/4" Brass/Steel
D5122BL Breco - 3/4" Brass/Steel with Ball Lock
5905W Foster - 3/4" Brass/Steel
Requires Hose Clamps

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
