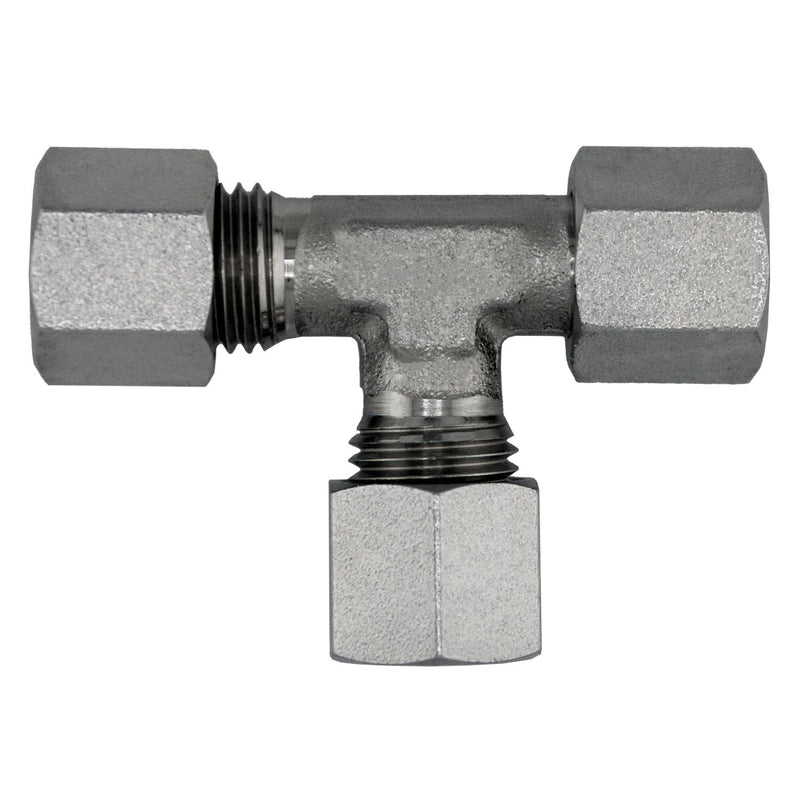

D6602-L10-L10-L10 by Midland | Hydraulic Metric Compression Fitting | DIN Swivel Run Tee | Light | L10 Tube OD x L10 Tube OD x L10 Tube OD | Steel

D6602-L10-L10-L10 by Midland | Hydraulic Metric Compression Fitting | DIN Swivel Run Tee | Light | L10 Tube OD x L10 Tube OD x L10 Tube OD | Steel

Save $5.49 Save $5.49
$10.14
$10.14 - $10.14
$10.14
$4.65
$4.65 - $4.65
$4.65

Midland Industries
Hydraulic Metric Compression Fitting: DIN Swivel Run Tee - Steel

Inventory @ Manufacturers Warehouse: 481 Units
Specifications for Variant SKU: D6602-L10-L10-L10 Midland
Shape (Orientation): Tee
Ends Configuration: L10 Female DIN, L10 Female DIN, L10 Female DIN, Some Ends Match
Material(s): Steel
Part Number Tube O.D.
1		 Tube O.D.
2		 Tube O.D.
3
D6602-L08-L08-L08 Light 08mm Light 08mm Light 08mm
D6602-L10-L10-L10 Light 10mm Light 10mm Light 10mm
D6602-L12-L12-L12 Light 12mm Light 12mm Light 12mm
D6602-L15-L15-L15 Light 15mm Light 15mm Light 15mm
D6602-L22-L22-L22 Light 22mm Light 22mm Light 22mm
D6602-L28-L28-L28 Light 28mm Light 28mm Light 28mm
D6602-L35-L35-L35 Light 35mm Light 35mm Light 35mm
D6602-L42-L42-L42 Light 42mm Light 42mm Light 42mm
D6602-S06-S06-S06 Heavy 6mm Heavy 6mm Heavy 6mm
D6602-S08-S08-S08 Heavy 8mm Heavy 8mm Heavy 8mm
D6602-S10-S10-S10 Heavy 10mm Heavy 10mm Heavy 10mm
D6602-S12-S12-S12 Heavy 12mm Heavy 12mm Heavy 12mm
D6602-S14-S14-S14 Heavy 14mm Heavy 14mm Heavy 14mm
D6602-S16-S16-S16 Heavy 16mm Heavy 16mm Heavy 16mm
D6602-S20-S20-S20 Heavy 20mm Heavy 20mm Heavy 20mm
D6602-S25-S25-S25 Heavy 25mm Heavy 25mm Heavy 25mm
D6602-S30-S30-S30 Heavy 30mm Heavy 30mm Heavy 30mm
D6602-S38-S38-S38 Heavy 38mm Heavy 38mm Heavy 38mm

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
