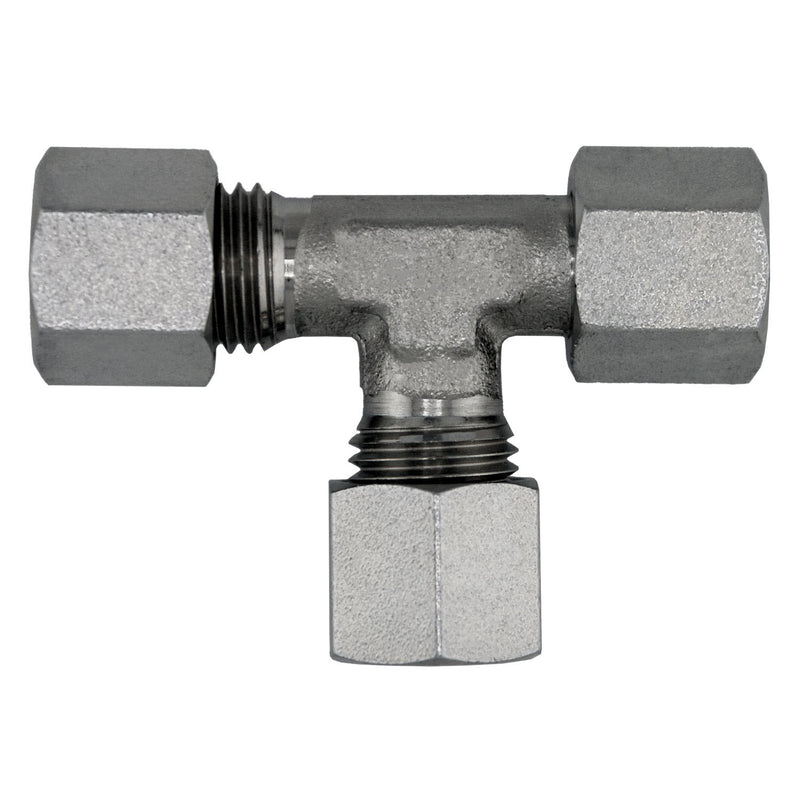

D6602-L22-L22-L22 by Midland | Hydraulic Metric Compression Fitting | DIN Swivel Run Tee | Light | L22 Tube OD x L22 Tube OD x L22 Tube OD | Steel

Name: D6602-L22-L22-L22 by Midland | Hydraulic Metric Compression Fitting | DIN Swivel Run Tee | Light | L22 Tube OD x L22 Tube OD x L22 Tube OD | Steel
Brand: Midland Industries
SKU: D6602-L22-L22-L22 Midland
Price: 17.53 USD
Availability: InStock

Save $11.69

$29.22

$29.22 - $29.22

$29.22

$17.53

$17.53 - $17.53

$17.53

Midland Industries
Hydraulic Metric Compression Fitting: DIN Swivel Run Tee - Steel

Inventory @ Manufacturers Warehouse: 495 Units

Specifications for Variant SKU: D6602-L22-L22-L22 Midland
Shape (Orientation):	Tee
Ends Configuration:	L22 Female DIN, L22 Female DIN, L22 Female DIN, Some Ends Match
Material(s):	Steel

Part Number	Tube O.D. 1	Tube O.D. 2	Tube O.D. 3
D6602-L08-L08-L08	Light 08mm	Light 08mm	Light 08mm
D6602-L10-L10-L10	Light 10mm	Light 10mm	Light 10mm
D6602-L12-L12-L12	Light 12mm	Light 12mm	Light 12mm
D6602-L15-L15-L15	Light 15mm	Light 15mm	Light 15mm
D6602-L22-L22-L22	Light 22mm	Light 22mm	Light 22mm
D6602-L28-L28-L28	Light 28mm	Light 28mm	Light 28mm
D6602-L35-L35-L35	Light 35mm	Light 35mm	Light 35mm
D6602-L42-L42-L42	Light 42mm	Light 42mm	Light 42mm
D6602-S06-S06-S06	Heavy 6mm	Heavy 6mm	Heavy 6mm
D6602-S08-S08-S08	Heavy 8mm	Heavy 8mm	Heavy 8mm
D6602-S10-S10-S10	Heavy 10mm	Heavy 10mm	Heavy 10mm
D6602-S12-S12-S12	Heavy 12mm	Heavy 12mm	Heavy 12mm
D6602-S14-S14-S14	Heavy 14mm	Heavy 14mm	Heavy 14mm
D6602-S16-S16-S16	Heavy 16mm	Heavy 16mm	Heavy 16mm
D6602-S20-S20-S20	Heavy 20mm	Heavy 20mm	Heavy 20mm
D6602-S25-S25-S25	Heavy 25mm	Heavy 25mm	Heavy 25mm
D6602-S30-S30-S30	Heavy 30mm	Heavy 30mm	Heavy 30mm
D6602-S38-S38-S38	Heavy 38mm	Heavy 38mm	Heavy 38mm

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
