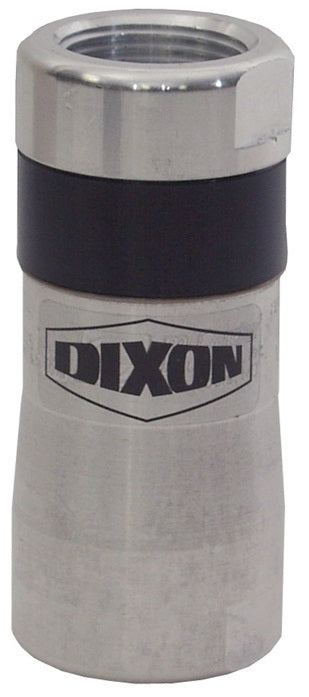

DAB1 by Dixon Valve | Breakaway | for Diesel & Gasoline Nozzle | 1" Size | F-7036 Viton® Seal | Aluminum

Save $9.05 Save $9.05
Original price $130.62
Original price $130.62 - Original price $130.62
Original price $130.62
Current price $121.57
$121.57 - $121.57
Current price $121.57

Dixon Valve
Tank Truck | Breakaway for Diesel & Gasoline Nozzle


Specifications for Variant SKU: DAB1 Dixon
Brand: Bayco
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • Unique ball valves seal both ends when separated.
  • Design provides consistent and reliable performance.
  • Lightweight.
  • Easy to repair.
Construction:
  • Body: aluminum
  • Break rings (2): brass
  • Seals: F-7036 Viton®
Specifications:
  • 3/4" UL Listed.
  • Separation Force: 300 lbs.
Part Number Size Separation Force
(Lbs)
DAB34 3/4" 325 lbs
DAB1 1" 325 lbs
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
