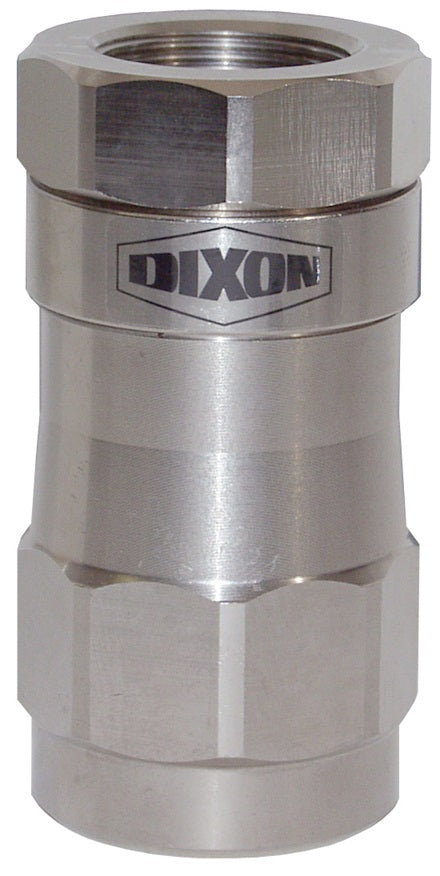

DAB15 by Dixon Valve | Breakaway | for Diesel & Gasoline Nozzle | 1-1/2" Size | F-7036 Viton™ Seal | Nickel Plated Aluminum

Save $21.61

$784.81

$784.81 - $784.81

$784.81

$763.20

$763.20 - $763.20

$763.20

Dixon Valve
Tank Truck | Breakaway for Diesel & Gasoline Nozzle

Provides breakaway protection for high capacity fueling operations such as truck and bus terminals, mining, off-road fueling, and fuel oil delivery.

Quantity

Specifications for Variant SKU: DAB15 Dixon
Brand:	Bayco
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPT, 1-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Construction:
Body: nickel plated aluminum. Brass break rings: 4 total in 1-1/4" and 1-1/2"; 6 total in 2". Seals: F-7036 Viton™. Check valve - PTFE ball seals both ends when separated.

Part Number	Size	Separation Force (Lbs)
DAB14	1-1/4"	600 lbs
DAB15	1-1/2"	600 lbs
DAB2	2"	800 lbs

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
