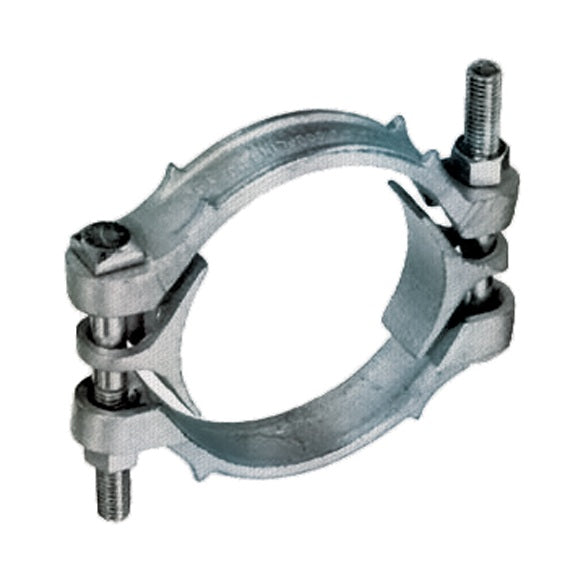

DB400 by Kuriyama | DB Series | Double Bolt Hose Clamp | 3-1/2" to 4" Size Range | Zinc Plated Ductile Iron

DB400 by Kuriyama | DB Series | Double Bolt Hose Clamp | 3-1/2" to 4" Size Range | Zinc Plated Ductile Iron

Save $8.39 Save $8.39
$18.55
$18.55 - $18.55
$18.55
$10.16
$10.16 - $10.16
$10.16

Kuriyama of America Inc.
DB Series | Double Bolt Clamp | Zinc Plated Ductile Iron

Design provides for an efficient means of securing couplings and fittings to hoses.

Fully tightened, the clamps secure the full circumference of the hose.
Specifications for Variant SKU: DB400 Kuriyama
Series: DB Series
Material(s): Zinc Plated Ductile Iron

What are the Features?

  • Design provides for an efficient means of securing couplings and fittings to hoses.
  • Double tongue saddles provided to fill the gap between the bolt lugs preventing pinching of the outside of the hose.
  • Fully tightened, the clamps secure the full circumference of the hose.

What are the Materials?

  • Zinc Plated Ductile Iron.
Part Number Size Range
(in)		 Maximum Torque
(ft lbs)		 Weight
Each
(lbs)
DB29 7/8" - 1-9/64" 20 ft lbs 0.29 lbs
DB34 1-5/32" - 1-11/32" 20 ft lbs 0.31 lbs
DB40 1-5/16" - 1-19/32" 20 ft lbs 0.43 lbs
DB49 1-5/8" - 1-15/16" 20 ft lbs 0.56 lbs
DB60 1-7/8" - 2-3/8" 20 ft lbs 0.64 lbs
DB76 2-3/8" - 3-7/16" 40 ft lbs 0.73 lbs
DB94 3-1/32" - 3-11/16" 40 ft lbs 1.30 lbs
DB115 3-3/4" - 4-1/2" 40 ft lbs 1.68 lbs
DB400 3-1/2" - 4" 40 ft lbs 1.54 lbs
DB431 3-25/32" - 4-1/16" 40 ft lbs 2.13 lbs
DB463 4-1/16" - 4-7/16" 40 ft lbs 1.79 lbs
DB525 4-3/16" - 5" 60 ft lbs 2.14 lbs
DB550 4-7/16" - 5-3/16" 60 ft lbs 2.27 lbs
DB600 5-1/2" - 5-7/8" 60 ft lbs 2.65 lbs
DB639 5-11/16" - 5-15/16" 60 ft lbs 2.80 lbs
DB675 6-1/8" - 6-7/8" 60 ft lbs 2.98 lbs
DB769 6-15/16" - 7-5/8" 60 ft lbs 3.81 lbs
DB818 7-11/16" - 8-3/16" 125 ft lbs 5.11 lbs
DB875 8-1/4" - 8-7/8" 125 ft lbs 5.64 lbs
DB988 8-15/16" - 9-7/8" 125 ft lbs 6.15 lbs
DB1125 9-15/16" - 11-3/8" 125 ft lbs 9.48 lbs
DB1275 11-3/16" - 13" 125 ft lbs 9.61 lbs
DB1360 12-3/16" - 14" 200 ft lbs 15.43 lbs
DB1450 13-3/16" - 15" 200 ft lbs 16.74 lbs
DB1700 15-1/16" - 17-1/2" 260 ft lbs 22.13 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
