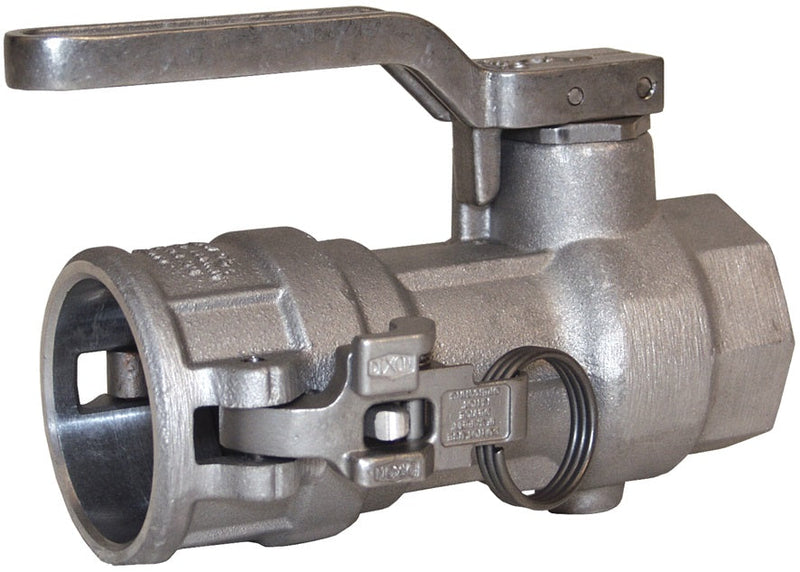

DBC63-300 Bayloc® by Dixon Valve | Dry Disconnect | 3" Female NPT x 4" Coupler | PTFE Encapsulated Silicone & FFPM Seal | Aluminum

DBC63-300 Bayloc® by Dixon Valve | Dry Disconnect | 3" Female NPT x 4" Coupler | PTFE Encapsulated Silicone & FFPM Seal | Aluminum

Save $248.11 Save $248.11
$2,232.95
$2,232.95 - $2,232.95
$2,232.95
$1,984.84
$1,984.84 - $1,984.84
$1,984.84

Dixon Valve
Bayloc® Dry Disconnect | Coupler x Female NPT

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DBC63-300 Dixon
Brand: Bayloc
Shape (Orientation): Straight
Ends Configuration: 4in Female Cam & Groove, 3in Female NPT
Material(s): Aluminum
Seal Material(s): PTFE & FFPM & Silicone
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Use:
  • Use with DBA style adapters.
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size.
Features:
  • Coupler has automatic closing poppet assembly.
  • Heavy duty construction provides long service life.
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service.
  • Strong handle attachment prevents bending of crank assembly.
  • Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.
Construction:
  • Heavy duty stainless steel handle, crank and link.
  • Stainless steel corrosion resistance is comparable to 304 stainless steel.
Safety Notes:
  • Must be used with a DBA (Dry Break Cam & Groove) Style adapter for coupler to operate. Adapter sold separately.
Specifications:
  • Canadian registration number CRN # OH14044 all provinces.
  • Maximum operating pressure at 70°F (21°C):
    • 1-1/2" - 210 PSI
    • 2" - 150 PSI
    • 3" - 120 PSI
Aluminum
Part Number		 Stainless Steel
Part Number		 Female NPT Coupler Size Seal Material Maximum
PSI at
70°F (21°C)
DBC61-150 DBC71-150 1-1/2" 2" Nitrile Rubber 210 PSI
DBC61-200 DBC71-200 2" 2-1/2" Nitrile Rubber 150 PSI
DBC61-300 DBC71-300 3" 4" Nitrile Rubber 120 PSI
DBC62-150 DBC72-150 1-1/2" 2" FKM 210 PSI
DBC62-200 DBC72-200 2" 2-1/2" FKM 150 PSI
DBC62-300 DBC72-300 3" 4" FKM 120 PSI
DBC63-150 DBC73-150 1-1/2" 2" PTFE Encapsulated Silicone & FFPM 210 PSI
DBC63-200 DBC73-200 2" 2-1/2" PTFE Encapsulated Silicone & FFPM 150 PSI
DBC63-300 DBC73-300 3" 4" PTFE Encapsulated Silicone & FFPM 120 PSI
DBC64-150 DBC74-150 1-1/2" 2" EPDM 210 PSI
DBC64-200 DBC74-200 2" 2-1/2" EPDM 150 PSI
DBC64-300 DBC74-300 3" 4" EPDM 120 PSI
DBC66-150 DBC76-150 1-1/2" 2" FFPM and PTFE* 210 PSI
DBC66-200 DBC76-200 2" 2-1/2" FFPM and PTFE* 150 PSI
DBC66-300 DBC76-300 3" 4" FFPM and PTFE* 120 PSI
- DBC77-150 1-1/2" 2" PTFE Encapsulated FKM & FFKM 210 PSI
- DBC77-200 2" 2-1/2" PTFE Encapsulated FKM & FFKM 150 PSI
- DBC77-300 3" 4" PTFE Encapsulated FKM & FFKM 120 PSI
DBC69-300 DBC79-300 3" 4" FKM-B 120 PSI

* FFPM gasket, main seal O-ring, and handle O-ring; PTFE seals on cylinder assembly, stuffing box, and seal under poppet screw
