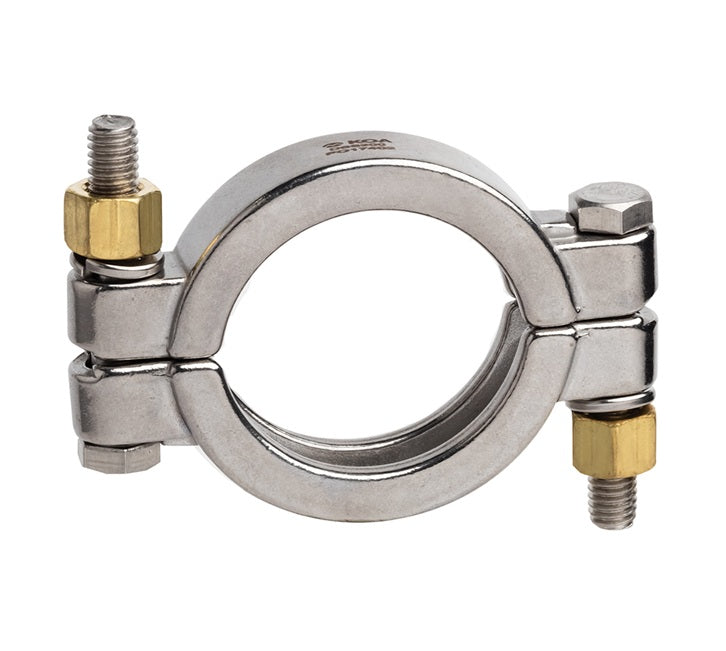

DBS300 by Kuriyama | DBS Series | Sanitary Bolted Clamp for Tri-Clamp | 3" Fitting End Size | 3" Clamp Size | 304 Stainless Steel

Save $11.21

$37.51

$37.51 - $37.51

$37.51

$26.30

$26.30 - $26.30

$26.30

Kuriyama of America Inc.
Sanitary Bolted Clamps | Fitting End Size x Clamp Size

Specifications for Variant SKU: DBS300 Kuriyama
Series:	DBS Series
Material(s):	304 Stainless Steel

What are the Features?

Double bolt design for higher pressures.
Durable 304 stainless steel.
For use with TCS-SS, RHAS-SS or BHAS-SS series fittings.
For use with adapters TCMPS-SS, TCFPS-SS, TCWL-SS, TCWS-SS.

Part Number	Fitting End Size (in)	Clamp Size (in)	Weight Each (lbs)
DBS150	1 & 1 1/2"	1-1/2"	0.55 lbs
DBS200	2"	2"	0.95 lbs
DBS300	3"	3"	1.21 lbs
DBS400	4"	4"	1.81 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
