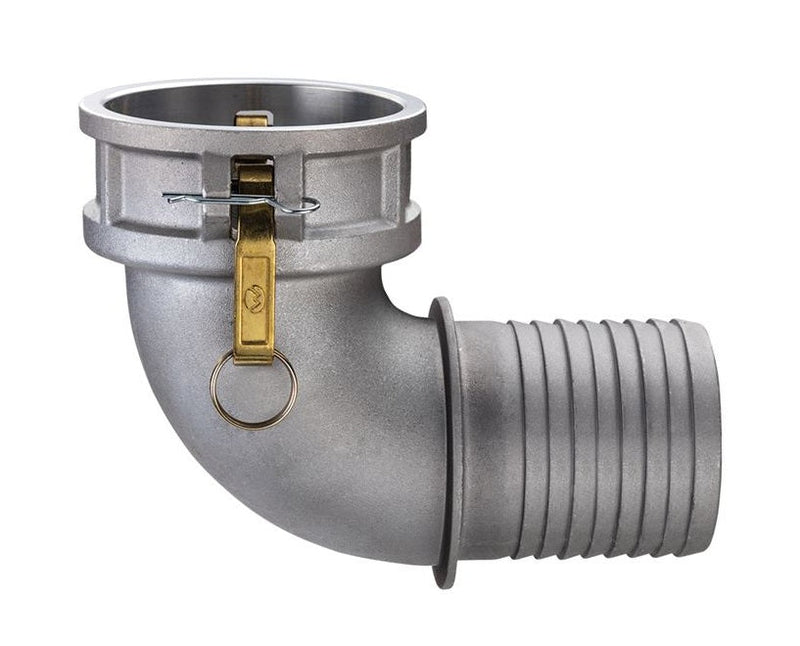

DC90-A150 by Kuriyama | DC90-AL Series | Part C | 90° Elbow | Cam & Groove Fitting | 1-1/2" Coupler x 1-1/2" Hose Barb | Aluminum

DC90-A150 by Kuriyama | DC90-AL Series | Part C | 90° Elbow | Cam & Groove Fitting | 1-1/2" Coupler x 1-1/2" Hose Barb | Aluminum

Save $12.77 Save $12.77
$55.01
$55.01 - $55.01
$55.01
$42.24
$42.24 - $42.24
$42.24

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | DC90-AL Series | Part C | 90° Elbow | Coupler x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: DC90-A150 Kuriyama
Series: DC90-AL Series
Shape (Orientation): 90 Degree
Cam Type: Type C
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
DC90-A150 1-1/2" 250 PSI B85 Grade 383 1.08 lbs
DC90-A200 2" 250 PSI B85 Grade 383 1.48 lbs
DC90-A300 3" 150 PSI B85 Grade 383 2.50 lbs
DC90-A400 4" 150 PSI B85 Grade 383 4.80 lbs
DC90-A600 6" 75 PSI B85 Grade 383 14.50 lbs
