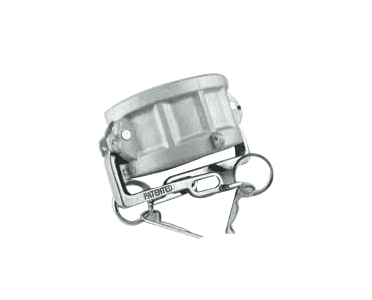

DCL300S by Jason Industrial | 3" Cam and Groove | Part DCL | Dust Cap with Lock Out Handle | Stainless Steel

DCL300S by Jason Industrial | 3" Cam and Groove | Part DCL | Dust Cap with Lock Out Handle | Stainless Steel

Save $31.13 Save $31.13
$65.20
$65.20 - $65.20
$65.20
$34.07
$34.07 - $34.07
$34.07

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part DCL - Stainless Steel Dust Cap with Stainless Steel Lockout Handles
Specifications for Variant SKU: DCL300S Jason
Cam Type: Type DC
Ends Configuration: 3in Female Cam & Groove
Material(s): Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Handles fold over top of cap.
  • Hole provided for padlock or seal.
  • Padlock or seal not furnished.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especialy capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
DCL125S 1-1/4" 250 PSI
DCL150S 1-1/2" 250 PSI
DCL200S 2" 250 PSI
DCL250S 2-1/2" 150 PSI
DCL300S 3" 125 PSI
DCL400S 4" 100 PSI
DCL600S 6" 75 PSI
* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
