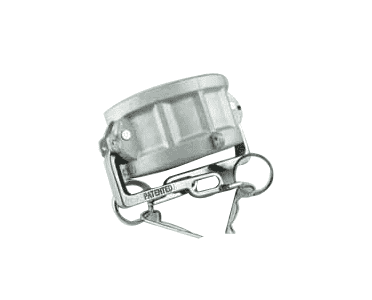

DCL600S by Jason Industrial | 6" Cam and Groove | Part DCL | Dust Cap with Lock Out Handle | Stainless Steel

DCL600S by Jason Industrial | 6" Cam and Groove | Part DCL | Dust Cap with Lock Out Handle | Stainless Steel

Save $44.59 Save $44.59
$156.06
$156.06 - $156.06
$156.06
$111.47
$111.47 - $111.47
$111.47

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part DCL - Stainless Steel Dust Cap with Stainless Steel Lockout Handles
Specifications for Variant SKU: DCL600S Jason
Cam Type: Type DC
Ends Configuration: 6in Female Cam & Groove
Material(s): Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Handles fold over top of cap.
  • Hole provided for padlock or seal.
  • Padlock or seal not furnished.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especialy capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
DCL125S 1-1/4" 250 PSI
DCL150S 1-1/2" 250 PSI
DCL200S 2" 250 PSI
DCL250S 2-1/2" 150 PSI
DCL300S 3" 125 PSI
DCL400S 4" 100 PSI
DCL600S 6" 75 PSI
* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
