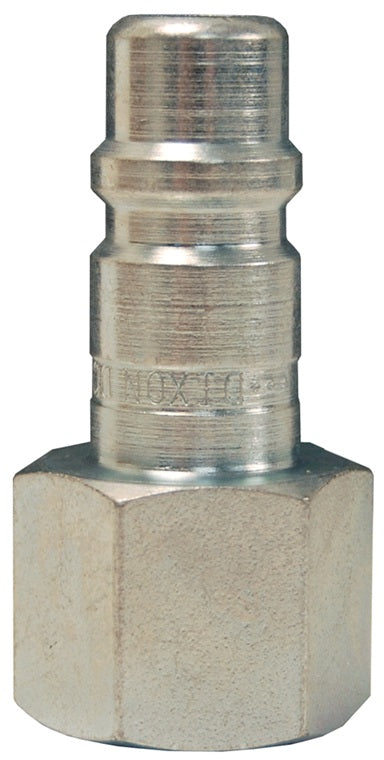

DCP2624 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Plug | 1/2" Female NPT x 3/8" Body Size | Steel

DCP2624 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Plug | 1/2" Female NPT x 3/8" Body Size | Steel

Save $0.71 Save $0.71
$8.20
$8.20 - $8.20
$8.20
$7.49
$7.49 - $7.49
$7.49

Air Chief Industrial Interchange Quick-Connect Plugs Air Chief industrial quick-connect plugs are the popular industrial interchange design and will interchange with many other makes. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DCP2624 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Male ISO-6150 Series B Industrial Pneumatic QD Interchange, 1/2in Female NPT
Material(s): Steel
Features:
  • Interchanges with many other manufacturer's designs.
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
Construction:
  • Steel
Specifications:
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Part Number Body Size Female NPT Flow Rating
at 100 PSI
DCP2021 1/4" 1/8" Female NPT 37 CFM
DCP20 1/4" 1/4" Female NPT 37 CFM
DCP2023 1/4" 3/8" Female NPT 37 CFM
DCP2622 3/8" 1/4" Female NPT 70 CFM
DCP26 3/8" 3/8" Female NPT 70 CFM
DCP2624 3/8" 1/2" Female NPT 70 CFM
DCP1823 1/2" 3/8" Female NPT 150 CFM
DCP18 1/2" 1/2" Female NPT 150 CFM
DCP1826 1/2" 3/4" Female NPT 150 CFM
DCP7024 3/4" 1/2" Female NPT 200 CFM
DCP7026 3/4" 3/4" Female NPT 200 CFM
DCP7028 3/4" 1" Female NPT 200 CFM
