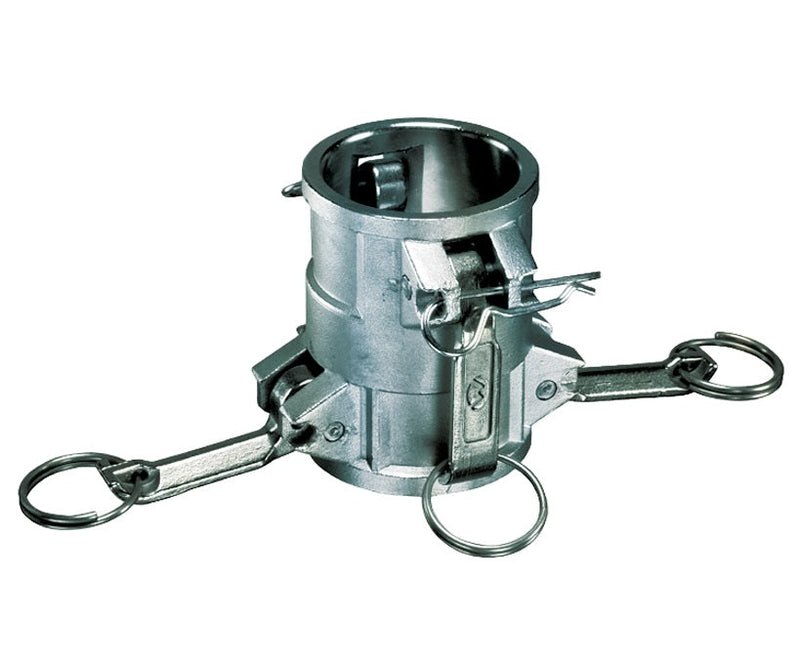

DD-SS300 by Kuriyama | DD-SS Series | Part DD | Cam & Groove Spool Coupler | 3" Coupler x 3" Coupler | 316 Stainless Steel

DD-SS300 by Kuriyama | DD-SS Series | Part DD | Cam & Groove Spool Coupler | 3" Coupler x 3" Coupler | 316 Stainless Steel

Save $26.22 Save $26.22
$154.65
$154.65 - $154.65
$154.65
$128.43
$128.43 - $128.43
$128.43

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Coupler x Coupler - 316 Stainless Steel

Specifications for Variant SKU: DD-SS300 Kuriyama
Series: DD-SS Series
Shape (Orientation): Straight
Cam Type: Type DD (Spool Coupler)
Ends Configuration: 3in Female Cam & Groove, 3in Female Cam & Groove, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Female Coupler Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
DD-SS150 1-1/2" 250 PSI A666/316 2.10 lbs
DD-SS200 2" 250 PSI A666/316 2.89 lbs
DD-SS300 3" 150 PSI A666/316 5.11 lbs
DD-SS400 4" 150 PSI A666/316 6.66 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
