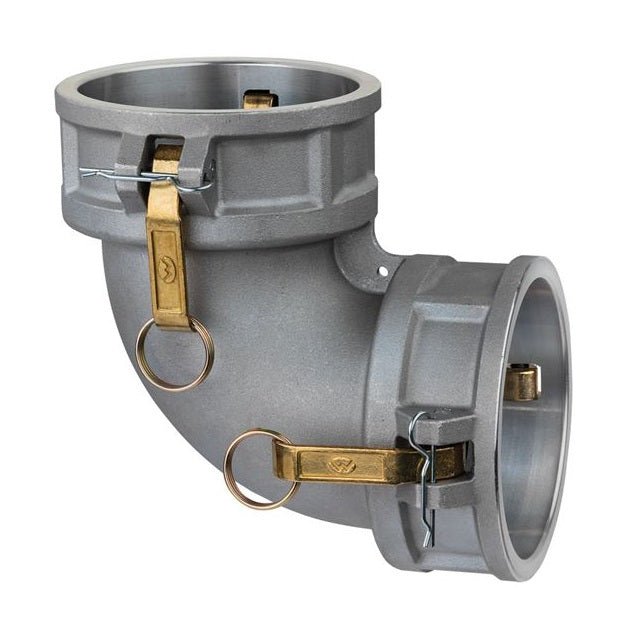

DD90-AL200 by Kuriyama | DD90-AL Series | Part DD | 90° Elbow | Cam & Groove Spool Coupler | 2" Coupler x 2" Coupler | Aluminum

DD90-AL200 by Kuriyama | DD90-AL Series | Part DD | 90° Elbow | Cam & Groove Spool Coupler | 2" Coupler x 2" Coupler | Aluminum

Save $15.05 Save $15.05
$79.95
$79.95 - $79.95
$79.95
$64.90
$64.90 - $64.90
$64.90

Kuriyama of America Inc.
Cam & Groove (Camlock) Spool Coupler | DD90-AL Series | Part DD | 90° Elbow | Coupler x Coupler | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: DD90-AL200 Kuriyama
Series: DD90-AL Series
Shape (Orientation): 90 Degree
Cam Type: Type DD (Spool Coupler)
Ends Configuration: 2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
DD90-AL200 2" 250 PSI B85 Grade 383 2.20 lbs
DD90-AL300 3" 150 PSI B85 Grade 383 3.50 lbs
DD90-AL400 4" 150 PSI B85 Grade 383 5.10 lbs
DD90-AL600 6" 75 PSI B85 Grade 383 10.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
