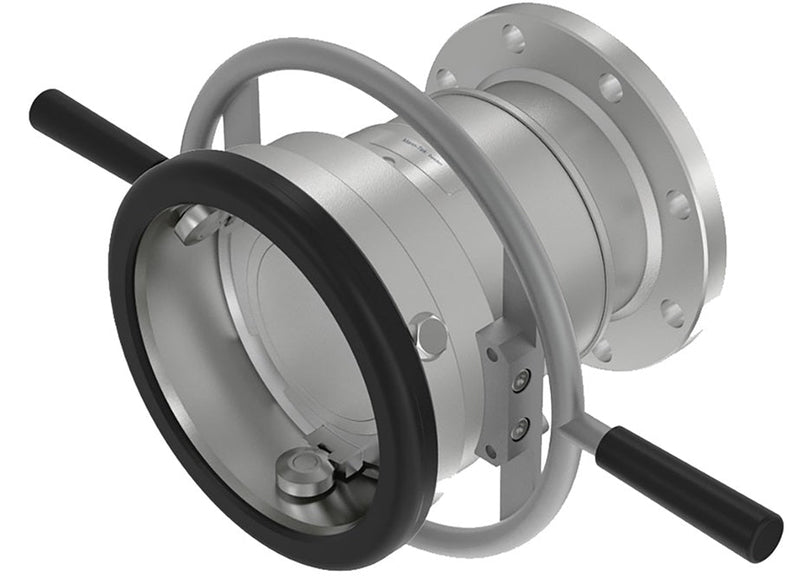

DDC600SSFL by Dixon Valve | MannTek Dry Disconnect Coupler | Hose Unit | 6" 150# ASA Flange | 238mm Body Size | 316 Stainless Steel

Save $1,474.63

$13,271.69

$13,271.69 - $13,271.69

$13,271.69

$11,797.06

$11,797.06 - $11,797.06

$11,797.06

Dixon Valve
MannTek Dry Disconnect | Hose Unit | Coupler x 150# ASA Flange

Dry disconnect couplings are designed for the quick and spill free connection and disconnection of hoses and pipelines.

They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids.

FREE SHIPPING DOMESTICALLY!

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DDC600SSFL Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	238mm Female Manntek Dry Disconnect, 6in 150# Flange
Material(s):	316 Stainless Steel
Seal Material(s):	Viton/FKM

Compatibility & Interchange Data:
Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756.
Construction:
Standard seal supplied: FKM (FPM). Stainless steel ball bearings. All wetted parts are stainless steel. Rollers are Hastelloy C276 on the stainless steel shaft.
Features:
Coupler has built-in swivel. Shaft journal in stainless steel embedded in PTFE to eliminate seizure. The protective ring is a specially formulated, weather resistant and electrically conductive rubber compound. Selectivity - to avoid product contamination, selective versions of the couplers and adapters are available. Contact Dixon for further information. Easy to handle - push and turn - free flow, turn and pull - closed. Time saving - no need to drain hoses or pipe systems. Economical - no loss or spillage of liquids at connection or disconnection. Safety - the valve cannot be opened until the unit is coupled. Environmental friendly - accidental spillage eliminated when properly used. Safe and reliable - due to rugged construction. Product life - uncomplicated design and high quality materials ensures long product life.
Specifications:
Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C Working pressure is based on PSI at ambient temperature 70°F. Stainless Steel: 360 PSI
Use:
Use with composite (Polyeten PE-HD 300) plugs for protection against corrosion; plugs withstand hot and cold environments.


316 Stainless Steel Part Number	150# Flange	Body Size
DDC200SSFL	2"	70 mm
DDC300SSFL	3"	119 mm
DDC400SSFL	4"	164 mm
DDC600SSFL	6"	238 mm
DDC800SSFL	8"	272 mm
