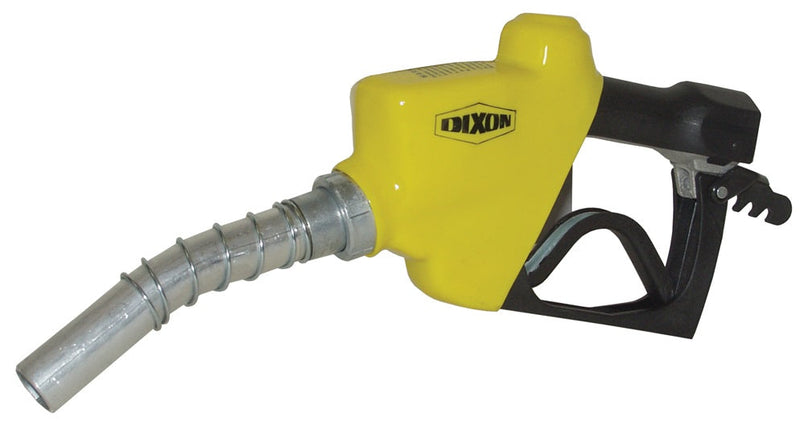

DFN100-NPNF FuelMaster™ by Dixon Valve | Diesel Nozzle with Safety Valve | UL Listed | 1" NPT Inlet | 1-1/8" Spout Outlet | Aluminum

Save $12.60

$181.45

$181.45 - $181.45

$181.45

$168.85

$168.85 - $168.85

$168.85

Dixon Valve
Tank Truck | Big Mouth™ Diesel Nozzle

For use at truck stops (not designed for use with gravity flow tanks, small 12 volt or AC utility pumps, farm or consumer pumps).

Quantity

Specifications for Variant SKU: DFN100-NPNF Dixon
Brand:	Bayco
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female NPT
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Features:
Lightweight but strong. Micro-touch valve provides smooth operation and exceptional flow control. Roto-matic latch pin provides positive auto shut-off. Pure PTFE packing eliminates stem leaks. Super tough nylon hand guard. Snap-on handle cover makes changing scuff guards easy. Yellow scuff guard.
Construction:
Body and spout: aluminum. Body caps: zinc. Seals: FKM / nitrile. Poppet disk: FKM. Stem packing: PTFE. Trigger: steel. Snap-on cover: plastic. Scuff guard: vinyl.

Features	Part Number	NPT Inlet	Spout Outlet	Approximate Flow Rate at 20 PSI (GPM)
With trigger hold-open clip Non-UL listed nozzles	DFN100	1"	1-1/8"	27

With trigger hold-open clip With 'no pressure, no flow' safety valve UL listed nozzle	DFN100-NPNF	1"	1-1/8"	27

Without trigger hold-open clip UL listed nozzle	DFN100-NC	1"	1-1/8"	27
