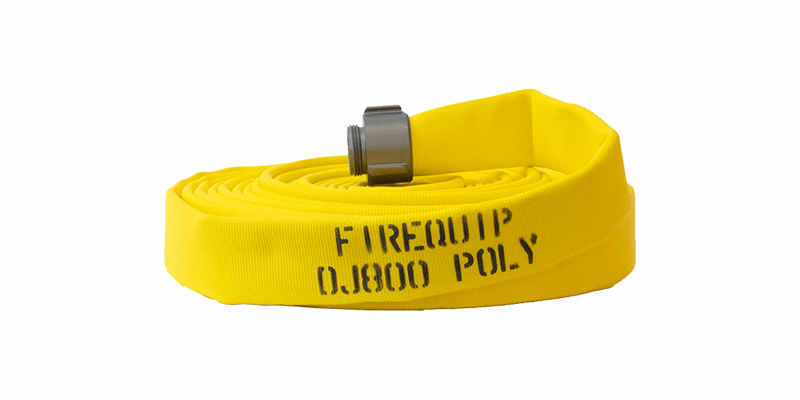

DJ30x50Y25N by Snap-Tite | DJ800 Series | Double Jacket Polyester Fire Hose Assembly with EPDM Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 400 PSI | Yellow | 50ft Length

DJ30x50Y25N by Snap-Tite | DJ800 Series | Double Jacket Polyester Fire Hose Assembly with EPDM Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 400 PSI | Yellow | 50ft Length

Save $142.93 Save $142.93
$500.26
$500.26 - $500.26
$500.26
$357.33
$357.33 - $357.33
$357.33

Snap-Tite Hose
DJ800™ - POLYESTER DOUBLE JACKETED ATTACK HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 50 FT

Specifications for Variant SKU: DJ30x50Y25N Snap-Tite
Brand: Firequip
Series: DJ800 Series
Hose Color(s): Yellow
Internal Diameter: 3in
Tubing Construction: EPDM
Cover Construction: Polyester
Ends Configuration: 2-1/2in Male NH, 2-1/2in Female NH
Material(s): Aluminum
Applicable Specs & Approvals: NFPA 1961
Model: DJ800
Basic Construction: Municipal grade double jacketed hose with lightweight EPDM rubber liner
Colors: Blue, Orange, Red, Green, Yellow
Application: Attack Handline
Temperature Range: -40°F to 150°F (-40°C to 65°C)
Description:
The DJ800 is a municipal grade double jacketed hose with a lightweight EPDM rubber liner that meets all the requirements of NFPA 1961. Its lightweight and durable construction is designed for use as an attack handline hose and is manufactured to a service test pressure of 400 psi to handle all fireground challenges with ease. The tightly woven polyester fabric allows for easy, flat-folding storage. With the DJ800, firefighters can confidently tackle a variety of challenges, from structure fires to industrial accidents.
Couplings:
NPSH, Aluminum NH Threads, and Special Threads Available
Blue
Nominal
Size		 Bowl
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/50')
Service Proof Burst Uncoupled
1" - DJ10x25B10N DJ10x50B10N DJ10x100B10N Standard - - - -
1-1/2" 1.938" DJ15x25B15N DJ15x50B15N DJ15x100B15N Standard 400 800 1200 18
1-3/4" 2.063" DJ17x25B15N DJ17x50B15N DJ17x100B15N Standard 400 800 1200 18
2" 2.438" DJ20x25B15N DJ20x50B15N DJ20x100B15N Standard 400 800 1200 21
2-1/2" 2.938" DJ25x25B25N DJ25x50B25N DJ25x100B25N Standard 400 800 1200 26
3" 3.563" DJ30x25B25N DJ30x50B25N DJ30x100B25N Standard 400 800 1200 40
Orange
Nominal
Size		 Bowl
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/50')
Service Proof Burst Uncoupled
1" - DJ10x25O10N DJ10x50O10N DJ10x100O10N Standard - - - -
1-1/2" 1.938" DJ15x25O15N DJ15x50O15N DJ15x100O15N Standard 400 800 1200 18
1-3/4" 2.063" DJ17x25O15N DJ17x50O15N DJ17x100O15N Standard 400 800 1200 18
2" 2.438" DJ20x25O15N DJ20x50O15N DJ20x100O15N Standard 400 800 1200 21
2-1/2" 2.938" DJ25x25O25N DJ25x50O25N DJ25x100O25N Standard 400 800 1200 26
3" 3.563" DJ30x25O25N DJ30x50O25N DJ30x100O25N Standard 400 800 1200 40
Red
Nominal
Size		 Bowl
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/50')
Service Proof Burst Uncoupled
1" - DJ10x25R10N DJ10x50R10N DJ10x100R10N Standard - - - -
1-1/2" 1.938" DJ15x25R15N DJ15x50R15N DJ15x100R15N Standard 400 800 1200 18
1-3/4" 2.063" DJ17x25R15N DJ17x50R15N DJ17x100R15N Standard 400 800 1200 18
2" 2.438" DJ20x25R15N DJ20x50R15N DJ20x100R15N Standard 400 800 1200 21
2-1/2" 2.938" DJ25x25R25N DJ25x50R25N DJ25x100R25N Standard 400 800 1200 26
3" 3.563" DJ30x25R25N DJ30x50R25N DJ30x100R25N Standard 400 800 1200 40
Green
Nominal
Size		 Bowl
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/50')
Service Proof Burst Uncoupled
1" - DJ10x25G10N DJ10x50G10N DJ10x100G10N Standard - - - -
1-1/2" 1.938" DJ15x25G15N DJ15x50G15N DJ15x100G15N Standard 400 800 1200 18
1-3/4" 2.063" DJ17x25G15N DJ17x50G15N DJ17x100G15N Standard 400 800 1200 18
2" 2.438" DJ20x25G15N DJ20x50G15N DJ20x100G15N Standard 400 800 1200 21
2-1/2" 2.938" DJ25x25G25N DJ25x50G25N DJ25x100G25N Standard 400 800 1200 26
3" 3.563" DJ30x25G25N DJ30x50G25N DJ30x100G25N Standard 400 800 1200 40
Yellow
Nominal
Size		 Bowl
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/50')
Service Proof Burst Uncoupled
1" - DJ10x25Y10N DJ10x50Y10N DJ10x100Y10N Standard - - - -
1-1/2" 1.938" DJ15x25Y15N DJ15x50Y15N DJ15x100Y15N Standard 400 800 1200 18
1-3/4" 2.063" DJ17x25Y15N DJ17x50Y15N DJ17x100Y15N Standard 400 800 1200 18
2" 2.438" DJ20x25Y15N DJ20x50Y15N DJ20x100Y15N Standard 400 800 1200 21
2-1/2" 2.938" DJ25x25Y25N DJ25x50Y25N DJ25x100Y25N Standard 400 800 1200 26
3" 3.563" DJ30x25Y25N DJ30x50Y25N DJ30x100Y25N Standard 400 800 1200 40

*10-year warranty.

*Potable water approved: Yes

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045

Snap-Tite Hose

Snap-Tite Hose

Snap-tite Hose is a premier American manufacturer of high-performance lay-flat and industrial hoses trusted across firefighting, municipal, agricultural, and industrial markets. With more than 55 years of engineering excellence and innovation, Snap-tite produces rugged, lightweight, and reliable hose solutions built to perform in the toughest conditions — from firegrounds to farms and heavy-duty industrial sites. Every hose is proudly made in the USA to strict quality standards, delivering durability and confidence to the professionals who depend on them.
